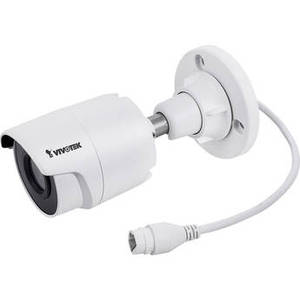

C Series IB9380-H 5MP Outdoor Network Bullet Camera with Night Vision
Product Description
Get a high definition view of your property with the C Series IB9380-H 5MP Outdoor Network Bullet Camera with Night Vision from Vivotek. Equipped with a 1/2.7" 5MP CMOS sensor and a 3.6mm fixed lens, the IB9380-H captures video at resolutions up to 2560 x 1920 at 20 fps in a 76 x 59° field of view. The camera is equipped with IR LEDs for up to 98' of night vision and uses a removable IR cut filter to switch from color to B&W for day/night functionality.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power while a microSD card slot allows for onboard storage of footage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power while a microSD card slot allows for onboard storage of footage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | |
| Focal Length | 3.6mm |
| Maximum Aperture | f/2 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 76° Vertical: 59° Diagonal: 100° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.03 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
| Camera Angle Adjustment | Vertical: 0 to 90° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 20 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | Five-Window Video Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 macOS 10.12 *As of November, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 512 MB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 6.49 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | 14 to 140°F / -10 to 60°C |
| Storage Temperature | |
| Operating Humidity | 90% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Certifications | C-Tick, FCC (Part 15 Class B), UL, as per Manufacturer |
| Material of Construction | |
| Dimensions | �: 3.6 x H: 7.0" / �: 91.1 x H: 176.8 mm |
| Weight | 1.17 lb / 530 g |
