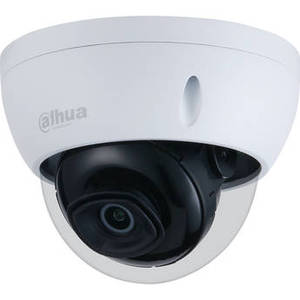

Lite Series N22AL12 2MP Outdoor Network Mini Dome Camera with Night Vision
Product Description
Capture Full HD security video with the Lite Series N22AL12 2MP Outdoor Network Mini Dome Camera from Dahua Technology. Featuring a 1/2.7" CMOS sensor and a 2.8mm fixed lens, this camera can record video at resolutions up to 1920 x 1080 at 30 fps in a 110 x 59° field of view. The camera has an IR cut filter and IR LEDs for night vision to a maximum effective range of 98'.
Designed for easy setup, this camera incorporates PoE technology so you can run just one cable for both data and power. The camera is housed in an IP67- and IK10-rated enclosure that makes it suitable for use in vandal-prone outdoor locations. A built-in microSD slot allows for onboard storage of footage while ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Designed for easy setup, this camera incorporates PoE technology so you can run just one cable for both data and power. The camera is housed in an IP67- and IK10-rated enclosure that makes it suitable for use in vandal-prone outdoor locations. A built-in microSD slot allows for onboard storage of footage while ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
| Camera | |
| Sensor | 2 MP 1/2.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Zoom | Digital: 16x |
| Lens Field of View | Horizontal: 110° Vertical: 59° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 65° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1,080,520 at 30 fps (6.1 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+ |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | Motion Detection, Tripwire Violation Detection, Intrusion Detection, Tamper Detection, Sudden Scene Change Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of October, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | 128 MB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 4.4 W PoE: 5 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 98.43' / 30 m |
| Video Management Software | IVS, Smart PSS, DSS, DMSS |
| Supported Languages | |
| Certifications | FCC (Part 15 Class B), UL, as per Manufacturer |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 4.3 x H: 3.2" / �: 109.9 x H: 81.0 mm |
| Weight | 0.77 lb / 350 g |
