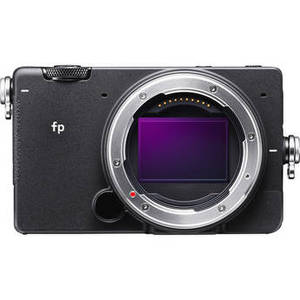

fp Mirrorless Camera

Product Description

The Sigma fp Mirrorless Camera delivers high-spec functionality for stills and video in an extremely compact body that weighs under one pound. Driven by a full-frame 24.6MP BSI Bayer CMOS sensor, 14-bit color depth, electronic image stabilization, and Leica's L-mount lens interface, the fp and its fully electronic shutter provide a maximum resolution for raw and JPEG files of 6000 x 4000 and a shooting rate of 18 fps, while its focus system employs contrast detection and a 49-point selection mode for AF measurement distance, as well as face detection, eye detection, and focus peaking. A base sensitivity of ISO 100-25600 can be expanded to ISO 6-102400, and its video recording capabilities allow for UHD 4K recording at up to 30p, while Full HD recording can be captured at up to 120p. For raw video data, 12-bit CinemaDNG external recording is supported. To help shooters fine tune their video content, Sigma's "Teal and Orange" mode is inspired by the color grading techniques of Hollywood and creates high contrast between orange colors, which are found in human skin tones, and teals (cyan blue), which are their complement. So that users may easily switch between still and video modes, there is a switch on top of the camera.

Also available for video shooters in a "Director's Viewfinder" function, which allows for the simulating of different angles of view and how an image looks in a cinema camera. It supports cameras such as the ARRI ALEXA LF and RED MONSTRO 8K, as well as other commonly-used digital cameras, film cameras, and anamorphic lenses.

Compose and review your shots with a 3.15" 2.1m-dot LCD touchscreen, and media is captured internally to a UHS-II SDXC card slot. Thanks to an effective heat sink and a 42-point seal for dust- and splash-proofing, the fp will function well for long hours of use in a wide variety of environments. If you need to connect to external peripherals, there is a USB 3.1 Gen 1 Type-C port and a micro-HDMI port.
Imaging
Lens Mount Leica L
Lens Communication
Sensor Resolution Actual: 25.38 Megapixel
Effective: 24.6 Megapixel (6000 x 4000)
Sensor Type 35.9 x 23.9 mm (Full-Frame) CMOS
Crop Factor
Image Stabilization Digital
Mirror Lock-Up
Built-In ND Filter None
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Shutter
Shutter Speed Electronic Shutter
1/8000 to 30 Seconds
Up to 300 Seconds in Bulb Mode
Bulb/Time Mode Bulb Mode
ISO Sensitivity 100 to 25,600 (Extended: 6 to 102,400)
Metering Method Center-Weighted Average, Evaluative, Spot
Exposure Modes Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3 EV Steps)
Metering Range -5 to 18 EV
Metering Range
White Balance Presets: Auto, Color Temperature, Custom, Custom 1, Custom 2, Daylight, Flash, Fluorescent, Incandescent, Overcast, Shade
Continuous Shooting Up to 18 fps at 24.6 MP for up to 12 Frames (Raw)
Up to 5 fps at 24.6 MP for up to 12 Frames (Raw)
Up to 3 fps at 24.6 MP for up to 24 Frames (Raw)
Interval Recording Yes
Self-Timer 2/10-Second Delay
Still Image Capture
Image Sizes 16:9 JPEG
6000 x 3376
4240 x 2392
3008 x 1688
3:2 JPEG
6000 x 4000
4240 x 2832
3008 x 2000
4:3 JPEG
5344 x 4000
3776 x 2832
2672 x 2000
1:1 JPEG
4000 x 4000
2832 x 2832
2000 x 2000
Aspect Ratio 1:1, 2:1, 3:2, 4:3, 7:6, 16:9, 21:9
Image File Format JPEG, Raw
Bit Depth 14-Bit
Video Capture
Internal Recording Modes H.264
UHD 4K (3840 x 2160) at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/59.94/100/119.88 fps
External Recording Modes 4:2:2 12-Bit via HDMI
UHD 4K (3840 x 2160) at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94/100/119.88 fps
Raw 12-Bit via HDMI
4096 x 2160 at 24.00 fps
3840 x 2160 at 23.98/24.00/25/29.97 fps
1920 x 1080p at 23.98/24.00/25/29.97/50/59.94/100/119.88 fps
Sensor Crop Modes
Sensor Crop While Recording
Gamma Curve
Broadcast Output
IP Streaming None
Built-In Microphone Type Stereo
Audio Recording 2-Channel 16-Bit 48 kHz LPCM Audio
Interface
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC (UHS-II)
Internal Memory
Video I/O 1 x Micro-HDMI Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Power I/O 1 x USB-C Input/Output
Other I/O 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data Input/Output (Shared with Power Input)
1 x 1/8" / 3.5 mm Control Input (Shared with Mic/Line Input)
Wireless None
Global Positioning (GPS, GLONASS, etc.) None
Monitor
Size 3.15"
Resolution 2,100,000 Dot
Display Type Fixed Touchscreen LCD
Secondary Display
Viewfinder
Type
Size
Resolution
Eye Point
Coverage
Magnification
Diopter Adjustment
Focus
Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Contrast Detection: 49
Autofocus Sensitivity -5 to +18 EV
Flash
Built-In Flash No
Flash Modes Red-Eye Reduction, Second-Curtain Sync, Slow Sync
Guide Number
Maximum Sync Speed 1/30 Second
Maximum Sync Speed
Flash Compensation -3 to +3 EV (1/3 EV Steps)
Dedicated Flash System S-TTL
External Flash Connection Hot Shoe
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature
Operating Humidity 0 to 85%
Storage Humidity
General
Battery Type 1 x Sigma BP-51 Rechargeable Lithium-Ion, 7.2 VDC, 1200 mAh
PoE Support
Power Consumption
Netflix Approved
Tripod Mounting Thread 1 x 1/4"-20 Female (Bottom)
2 x 1/4"-20 Female (Side)
Accessory Mount
Material of Construction Aluminum
Dimensions (W x H x D) 4.43 x 2.75 x 1.78" / 112.6 x 69.9 x 45.3 mm
Weight 14.89 oz / 422 g (With Battery, Recording Media)
13.05 oz / 370 g (Body Only)
