FA1016-NP/C/T 10.1" Class WUXGA Touchscreen IPS LCD Monitor
Product Description

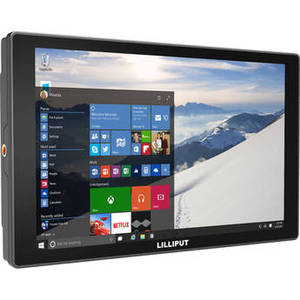

Add a touchscreen display to your system with the Lilliput FA1016-NP/C/T 10.1" Class WUXGA Touchscreen IPS LCD Monitor. It has a native resolution of WUXGA 1920 x 1200 with support for signals up to 4K at 30 fps. With a brightness rating of 320 cd/m², a contrast ratio of 1000:1, and viewing angles up to 175°, colors should appear clear in most installation settings. The monitor is equipped with HDMI and VGA inputs, an 1/8" headphone output, and a built-in speaker.
| Display | |
| Screen Size (Diagonal) | 10.1" |
| Resolution | 1920 x 1200 |
| Supported Display Resolutions | Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 320 cd/m� |
| Viewing Angle (H x V) | 175 x 175° |
| Screen Area | |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | |
| Response Time | |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI – Audio, Video (Bottom) 1 x 15-Pin VGA – Video (Bottom) |
| Output Ports | 1 x 1/8" / 3.5 mm – Headphone (Bottom) |
| USB Ports | 1 x Unspecified USB, USB-A - Touchscreen Control (Bottom) |
| Ethernet Ports | None |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Capacitive |
| Touch Resolution | |
| Audio | |
| Built-In Speakers | Yes, 1 |
| Speaker Configuration | 1-Channel |
| Processing | |
| Operating System | |
| GPU | |
| Storage | |
| RAM | |
| Supported File Systems | |
| Built-In Mic | |
| Microphone Features | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Operational: 10.0 W |
| AC Input Power | |
| DC Input Power | 7 to 24 VDC VDC at 750 mA |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Physical | |
| Wall Mounting | 75 x 75 mm |
| Mounting Cutout Dimensions | |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 9.9 x 6.2 x 1.0" / 252.0 x 157.0 x 25.0 mm |
| Stand Dimensions | |
| Weight | 1.18 lb / 535 g |
