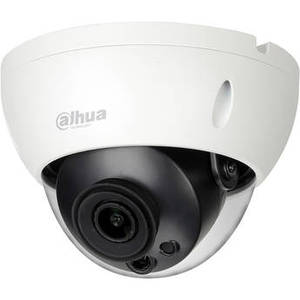

N45EM63 4MP Outdoor ePoE Network Dome Camera with Night Color Technology


From Dahua Technology | Model #: DAN45EM63



See more in Cameras


N45EM63 4MP Outdoor ePoE Network Dome Camera with Night Color Technology

Product Description

The N45EM63 4MP Outdoor ePoE Network Dome Camera from Dahua Technology uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Night Color technology enables the camera to capture and reproduce detailed color images in low-light conditions. The camera's 3.6mm fixed lens delivers a 93° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Additionally, ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables.

This dome camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.
Camera
Sensor 4 MP 1/1.8" CMOS
Lens Mount
Focal Length 3.6mm
Maximum Aperture f/1.2
Zoom
Lens Field of View Horizontal: 93°
Vertical: 50°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.00022 Lux
Shutter Speed 1/100000 to 1/3 Seconds
Camera Angle Adjustment Horizontal: 0 to 355°
Vertical: 0 to 75°
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2688 x 1520 at 30 fps (8.192 Mb/s H.264)
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, G.723, G.726
Built-In Mic No
Built-In Speaker
Audio I/O
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security HTTPS, IEEE 802.1X
Supported Protocols ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profiles S and G, CGI, Milestone, Genetec, P2P
Analytics Tampering Memory Card Error Network Error Unauthorized Access IP Address Conflict Motion Scene Change Abandoned/Missing Object Perimeter Protection (Tripwire & Intrusion) People Counting (Line Crossing & Region)
Built-In Installation Aids
OS Compatibility Android
iOS
*As of August, 2019: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 1 / 1
Hardware
Memory 512 MB RAM / 128 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption DC: 2.7 W
PoE: 3.5 W
Environmental
Operating Temperature -22 to 140°F / -30 to 60°C
Startup Temperature
Storage Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 10 to 95%
IP Rating IP67
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination
Video Management Software SmartPSS, DSS, P2P
Supported Languages
Certifications
Material of Construction Metal (Unspecified Type)
Dimensions �: 4.8 x H: 3.5" / �: 122.0 x H: 88.9 mm
Weight 1.04 lb / 0.47 kg
