Product Description

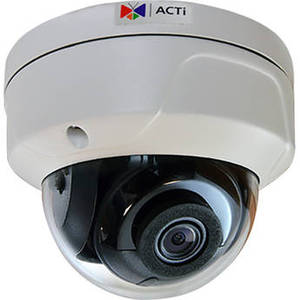

Monitor your property with the A71 4MP Outdoor Network Dome Camera from ACTi. Featuring a 4MP CMOS sensor and a 2.8mm fixed lens, this camera captures video at resolutions up to 2688 x 1520 at 30 fps in a 103 x 58° angle of view. It delivers color video in lighting conditions as low as 0.01 lux and B&W video down to 0.018 lux. Built-in video analytics include tampering detection, object line crossing detection, object enter area detection, and object loitering detection. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. It's rated IP67 and IK10 for use outdoors where vandalism is a concern.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 2.8mm |
| Maximum Aperture | f/1.6 |
| Zoom | |
| Lens Field of View | Horizontal: 103° Vertical: 58° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0.018 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 75° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2688 x 1520 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | Input: Terminal Block (Unspecified Pin Count) Output: Terminal Block (Unspecified Pin Count) |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Anonymous Authentication, HTTPS, IP Address Filtering, Password Protection |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | |
| Built-In Installation Aids | None |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | None |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 6 W PoE: 7.5 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 98.43' / 30 m |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 4.4 x H: 3.2" / �: 111.0 x H: 82.4 mm |
| Weight | 1.3 lb / 590 g |
