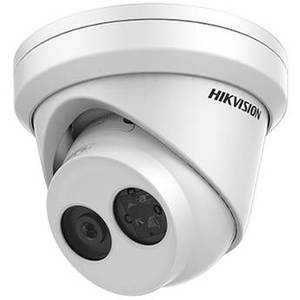

DS-2CD2383G0-I 8MP Outdoor Network Turret Camera with Night Vision & 2.8mm Lens (White)
Product Description
Monitor an outdoor area with the white DS-2CD2383G0-I 8MP Network Turret Camera from Hikvision uses a 1/2.5" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 15 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8mm fixed lens delivers a 102° horizontal field of view. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 rated for outdoor use.
This turret camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 rated for outdoor use.
| Camera | |
| Sensor | 8 MP 1/2.5" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 102° Vertical: 53° Diagonal: 124° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.028 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 75° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 15 fps (16 Mb/s ) 3072 x 1728 at 20 fps 2560 x 1440 at 30 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI |
| Analytics | Motion Detection Line Crossing Detection Intrusion Detection Face Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of November, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 6 W PoE: 7.5 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 100' / 30.48 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.0 x H: 3.8" / �: 127.3 x H: 95.9 mm |
| Weight | 1.36 lb / 620 g |
