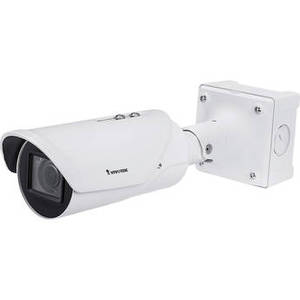

V Series IB9387-LPR 5MP Outdoor Network Bullet License Plate Camera with Night Vision & 2.7-13.5mm Lens


From Vivotek | Model #: VIIB9387LPR



See more in Cameras


V Series IB9387-LPR 5MP Outdoor Network Bullet License Plate Camera with Night Vision & 2.7-13.5mm Lens

Product Description

Capture license plates of moving vehicles day and night with the V Series IB9387-LPR 5MP Outdoor Network Bullet License Plate Camera with Night Vision from Vivotek. Equipped with a 1/2.7" 5MP CMOS sensor and a 2.7-13.5mm motorized varifocal lens, the IB9387-LPR captures video at resolutions up to 2560 x 1920 at 30 fps in a 100 to 30° field of view. The camera has a removable IR cut filter and IR LEDs for night vision with an effective range of up to 164'.

The IB9387-LPR has input and output connections for two-way audio communication, as well as a built-in 16GB microSD card for storing LPR images. Designed for use in vandal-prone outdoor locations, it is housed in an IP67- and IK10-rated enclosure. PoE technology enables you to run just one cable for both data and power, while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
Camera
Sensor 5 MP 1/2.7" CMOS
Lens Mount
Focal Length 2.7 to 13.5mm
Maximum Aperture f/1.4 to 2.8
Zoom Optical: 5x
Digital: 48x
Lens Field of View Horizontal: 100 to 30°
Vertical: 72 to 23°
Diagonal: 135 to 38°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.06 Lux
B&W: 0 Lux
Shutter Speed 1/32000 to 1/5 Seconds
Camera Angle Adjustment Horizontal: 0 to 350°
Vertical: 0 to 90°
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2560 x 1920 at 30 fps
1920 x 1080 at 60 fps
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats G.711, G.726
Built-In Mic No
Built-In Speaker No
Audio I/O Input:
Terminal Block (Unspecified Pin Count)
Output:
Terminal Block (Unspecified Pin Count)
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security HTTPS, IEEE 802.1X
Supported Protocols ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API)
Analytics Five-Window Video Motion Detection
Built-In Installation Aids
OS Compatibility Windows 7
Windows 8
macOS 10.12
*As of August, 2019: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O
Hardware
Memory 1 GB RAM / 256 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source AC, DC, PoE 802.3af (15 W)
Power Consumption PoE: 12 W
AC: 11.5 W
DC: 10 W
Environmental
Operating Temperature -22 to 140°F / -30 to 60°C
Startup Temperature 14 to 140°F / -10 to 60°C
Storage Temperature
Operating Humidity 90%
IP Rating IP67
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination IR LEDs up to 164' / 50 m
Video Management Software ANPR
Supported Languages English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Certifications C-Tick, FCC (Part 15 Class A), UL, as per Manufacturer
Material of Construction Metal (Unspecified Type)
Dimensions H: 4.6 x W: 4.6 x L: 11.6" / H: 118.0 x W: 118.0 x L: 294.0 mm
Weight 2.76 lb / 1254 g
