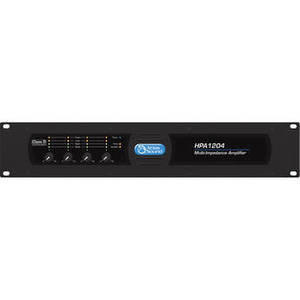

HPA1204 Four-Channel 1200W Commercial Amplifier (Black)
Product Description
The black Atlas Sound HPA1204 is a four-channel 1200W commercial amplifier offering 300W per channel, support for 4-ohm, 8-ohm, 70V, and 100V operation, and expandability via a separately available Dante card. By utilizing Generation II Class-D topology, this HPA Series amp delivers high power and enhanced efficiency along with sound quality akin to a Class-AB amplifier.
The switch mode, auto-sensing universal power supply ensures that a reliable output is achieved even when receiving inconsistent power voltages. Together, the power supply and output circuitry yield peak performance with a variety of speaker loads while remaining energy efficient and compact.
Detented attenuators enable easy level adjustments while their security cover prevents unwanted changes to amp gain. With fault reporting, remote turn-on functionality, and informative front-panel LED indicators, the HPA1204 is ideal for commercial distributed systems, contractor applications, houses of worship, and more.
The switch mode, auto-sensing universal power supply ensures that a reliable output is achieved even when receiving inconsistent power voltages. Together, the power supply and output circuitry yield peak performance with a variety of speaker loads while remaining energy efficient and compact.
Detented attenuators enable easy level adjustments while their security cover prevents unwanted changes to amp gain. With fault reporting, remote turn-on functionality, and informative front-panel LED indicators, the HPA1204 is ideal for commercial distributed systems, contractor applications, houses of worship, and more.
| Amplifier | |
| Form Factor/Type | |
| Number of Channels | 4 |
| Number of Channels | |
| Number of Zones | |
| Power Rating | 4 Ohms / 8 Ohms / 70 V / 100 V: 4 x 300 W per Channel (1 kHz, 1% THD) |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 100 V 70 V 8 Ohms 4 Ohms |
| Performance | |
| Protections | DC Fault, Output Limiter, Overcurrent, Overvoltage, RF, Short Circuit, Thermal, Undervoltage |
| Frequency Response | 20 Hz to 20 kHz +0/-1.5 dB |
| Damping Factor | > 200 |
| Input Sensitivity | 0.78 V 1 V 32 dB |
| Input Impedance | Line: 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| I/O Impedance | |
| Max Gain | 40 dB |
| Max Input Level | 24 dBu / 12 V |
| Input Level | |
| Input Gain/Trim Range | |
| Headroom | |
| Output Level | |
| VCA Control | 5 to 24 VDC |
| Max Voltage Swing | |
| Insertion Loss | |
| Dynamic Range | |
| SNR | > 70 dBA |
| SNR | |
| Noise | |
| EIN | |
| THD | ≤ 0.15% (1 kHz, Below Rated Power) |
| THD+N | |
| Distortion | |
| Intermodulation Distortion | |
| Crosstalk | > 70 dB |
| Slew Rate | > 10 V/μs |
| CMRR | |
| CMRR | |
| Signal Processing | |
| Sample Rate | |
| AD/DA Conversion | |
| DSP | |
| Latency | |
| Audio Delay | |
| Crossover | |
| EQ | None |
| Filters | |
| Ducking/Muting | No |
| Compressor | |
| Limiting | Clip |
| Connectivity | |
| I/O | 4 x Block 3-Pin Female Balanced Line Input 2 x Block 4-Pin Female Unbalanced Speaker Output (Detachable) 1 x Block 5-Pin Female GPIO Input/Output |
| Audio I/O | |
| Digital I/O | None |
| Digital Audio I/O | |
| Network I/O | |
| Other I/O | |
| Speaker Outputs | |
| Number of Module Slots | |
| USB | None |
| Phantom Power | |
| Bluetooth | |
| Bluetooth Profiles | |
| Bluetooth Range | |
| Media/Memory Card Slot | |
| Power | |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC / NEMA 5-15 |
| DC Input Power | |
| Current Consumption | 120 VAC: 0.27 A (Standby) 120 VAC: 0.85 A (Idle) 120 VAC, 4 Ohms: 2.1 A (RMS) 120 VAC, 4 Ohms: 13.13 A (Max) |
| Power Consumption | 120 VAC: 0.35 W (Standby) 120 VAC: 79.3 W (Idle) 120 VAC, 4 Ohms: 250 W (Typical) 120 VAC, 4 Ohms: 1575.6 W (Max) |
| AC Outlet | |
| Physical | |
| Display & Indicators | Front Panel: 1 x Blue LED (Power) 1 x Multi-Color LED (Standby) 1 x Yellow LED (Temp) 1 x Green LED (Status, per Channel) 1 x Green LED (Signal, per Channel) 1 x Yellow LED (Limit, per Channel) 1 x Red LED (Protect, per Channel) |
| Rackmount Size | 2 RU (with Included Hardware) |
| Cooling | 1 x Fan (Variable Speed) |
| Thermal Dissipation | 2.39 BTU/hr (Standby) 148.4 BTU/hr (Idle) 511.8 BTU/hr (Typical) 1279.5 BTU/hr (Maximum) |
| Certifications | CE, ETL, FCC, RoHS, WEEE *as per Manufacturer |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | 19.0 x 3.5 x 15.0" / 48.3 x 8.9 x 38.1 cm |
| Weight | 21.4 lb / 9.7 kg |
