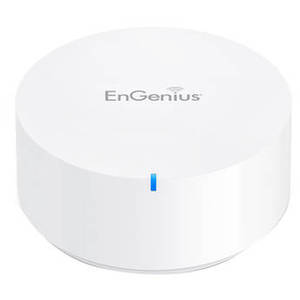

ESR580 Tri-Band Smart Whole-Home Wi-Fi System (2-Pack)
Product Description
Blanket your home in wireless coverage with the ESR580 Tri-Band Smart Whole-Home Wi-Fi System. Capable of up to 2200 Mb/s of Wi-Fi data throughput, the tri-band ESR580 router supports mesh technology, which allows you to create a single, seamless network by using multiple compatible mesh routers together. This package includes two ESR580 wireless routers.
The ESR580 comes equipped with two Gigabit Ethernet ports, ideal for wired connections to computers, game consoles, TV set-top boxes, and other Ethernet-enabled devices. Multi-user MIMO support allows for multiple simultaneous data connections, while beamforming support lets the router focus its Wi-Fi signals on nearby wireless devices.
| Number of Units | 2 |
| Connectivity | |
| Wi-Fi | Wi-Fi 5 (802.11ac); Tri-Band (2.4 & 5 + 5 GHz) |
| Inputs/Outputs | Router: 2 x RJ45 Gigabit Ethernet (LAN) 1 x USB-A |
| Number of Antennas | |
| MU-MIMO Support | 2 x 2 |
| Beamforming Support | No |
| Wireless Security | AES, WPA2 |
| Bluetooth | None |
| Communication Protocol | |
| Virtual Assistant | None |
| General | |
| Throughput | 1267 Mb/s Total 2.4 GHz: 400 Mb/s 5 GHz: 867 Mb/s |
| Transmit Power | 19 to 21 dBm |
| Antenna Gain | 4.4 to 5.6 dBi |
| Guest Network Support | Yes |
| Max SSIDs Supported | |
| Mobile Operating System Support | None |
| Operation Modes | Access Point, Wireless Router |
| Supported IEEE Standards | 802.11a, 802.11ac, 802.11b, 802.11g, 802.11n |
| Supported Protocols | |
| Hardware | |
| Processor | |
| CPU | 717 MHz Cortex A7 Quad-Core |
| Memory | |
| Flash Memory | |
| Speakers | None |
| Built-In Microphones | None |
| Display | None |
| Electrical | |
| AC Input Power | |
| DC Input Power | 12 VDC at 1 A |
| Power Consumption | |
| Operating Temperature | |
| Operating Humidity | |
| Storage Temperature | |
| Storage Humidity | |
| Physical | |
| Certifications | FCC, IC *as per Manufacturer |
| IP Rating | |
| Material of Construction | |
| Dimensions | 4.9 x 4.9 x 2.3" / 124.0 x 124.0 x 57.2 mm |
| Weight | 0.43 lb / 195 g |
