Product Description

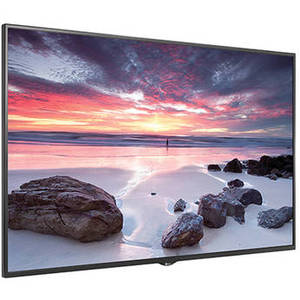

Bring your content to life with the UH5E Series 65" IPS UHD Digital Signage Display from LG. Aside from its 3840 x 2160 resolution and IPS (In-Plane Switching) technology, this display features 500 cd/m² brightness, wide 178° viewing angles, and a haze value of 28% for enhanced content visibility and text readability. Connect the display to your system via HDMI, DisplayPort, DVI-D, or USB Type-A. Integrated RS-232C, IR, and RJ45 control interfaces, along with built-in Wi-Fi, give you easy and convenient options for controlling and managing the display.
| Display | |
| Screen Size (Diagonal) | 65" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 500 cd/m� (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | |
| Response Time | 8 ms (GtG) |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | 68 ppi |
| Pixel Clock Frequency | |
| Connectivity | |
| Input Ports | 3 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort – Audio, Video 3 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB 2.0, USB-A |
| Ethernet Ports | 1 |
| Control | IP, IR, RS-232C |
| Other I/O | 1 x RS-232C Control Input 1 x RS-232C Output |
| Wi-Fi | Built-in |
| General | |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | Yes |
| Lighting Lifespan | 50000 Hours |
| Surface | |
| Touch Resolution | |
| Surface Treatment | Anti-Glare |
| Haze Level | 28% |
| Processing | |
| Processor | |
| CPU | |
| OS Compatibility | |
| Sensor | |
| Aperture | |
| Field of View | |
| Convenience | |
| Built-In Mic | |
| Microphone Features | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | Picture-in-Picture (PIP) |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 140.0 W Maximum: 200.0 W Economy Mode: 85.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | Internal |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 80% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | CE, EN60950-1, ENERGY STAR, FCC *as per Manufacturer |
| Physical | |
| Wall Mounting | 300 x 300 mm |
| Mounting Cutout Dimensions | |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | Yes |
| Glass Thickness | |
| Bezel Thickness | 12.1 mm (Top) 12.6 mm (Right/Left) 15.7 mm (Bottom) |
| Duty Cycle | |
| Dimensions | 57.4 x 33.4 x 1.6" / 1458.6 x 848.9 x 40.1 mm |
| Stand Dimensions | |
| Weight | 57.32 lb / 26 kg |
