Product Description

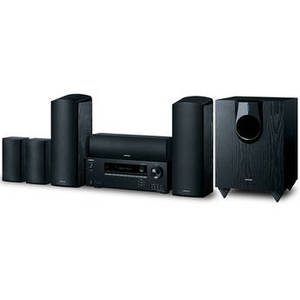

Enjoy an immersive surround sound experience with the Onkyo HT-S5910 5.1.2-Channel Home Theater System. It delivers up to 80W per channel at 8 ohms for robust audio playback. The receiver has built-in Bluetooth technology, which allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, tablets, and more.
Wired connectivity includes four HDMI inputs, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K UHD resolution, HDR10, HLG, and Dolby Vision, which can be passed through to your display via the HDMI output; this output supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.
The included speaker package features a 5.1.2-channel configuration, with two front speakers with embedded height channels, a center channel, two surround speakers, and a 10" powered subwoofer. The height channels built into the front speakers allow for Dolby Atmos and DTS:X playback.
Wired connectivity includes four HDMI inputs, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K UHD resolution, HDR10, HLG, and Dolby Vision, which can be passed through to your display via the HDMI output; this output supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.
The included speaker package features a 5.1.2-channel configuration, with two front speakers with embedded height channels, a center channel, two surround speakers, and a 10" powered subwoofer. The height channels built into the front speakers allow for Dolby Atmos and DTS:X playback.
| Receiver | |
| Channels | 5.1.2 |
| Power Output per Channel | 80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD |
| THD & Noise | 0.08% (20 Hz to 20 kHz, Half Power) |
| Input Sensitivity and Impedance | 200 mV / 47 Kilohms (RCA) |
| Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 109 dB (IHF-A, Line In, Speaker Out) |
| Speaker Impedance | 4 to 16 Ohms |
| Headphone Output | 80 mW per Channel (32 Ohms, 1 kHz, 10% THD) |
| Headphone Impedance | 8 to 600 Ohms |
| Frequency Response | Headphone Output: 10 Hz to 100 kHz |
| Tuner Section | |
| Tuning Frequency Range | FM: 87.5 MHz to 107.9 MHz AM: 530 kHz to 1710 kHz |
| FM/AM Preset Memory | 40 Stations |
| 50dB Quieting Sensitivity | Mono FM: 1 μV, 11.2 dBf (IHF, 1 kHz, 100% MOD) |
| Connectivity | |
| Bluetooth | Version: 4.2 Frequency: 2.4 GHz Modulation Method: FHSS (Frequency Hopping Spread Spectrum) Compatible Profiles: A2DP 1.3, AVRCP 1.5, HFP (Hands-Free Profile) 1.6, HSP (Headset Profile) 1.2, SPP (Serial Port Profile) 1.2 Codecs: SBC, AAC Transmission Range: 20 Hz to 20 kHz (A2DP, 44.1 kHz Sampling Frequency) Range: 49.2' / 15 m with Line of Sight |
| Inputs | 4 x HDMI 1 x Optical TOSLINK 1 x RCA Digital Coaxial 3 x Stereo RCA |
| Outputs | 1 x HDMI 1 x 1/4" / 6.35 mm Headphone (Front) 1 x Stereo RCA Zone B 2 x Subwoofer Pre-Out |
| Other Connections | 1 x AM Antenna In 1 x FM Antenna In 1 x USB Type-A Power Out 1 x 1/8" / 3.5 mm Setup Mic (Front) |
| HDMI Support | ARC, 3D, 4K UHD @ 60 Hz, 6G, HDR10, BT.2020, HLG, Dolby Vision, Auto Lip Sync, CEC |
| Speaker Connectors | 2 x Banana Plug-Compatible Binding Post Pairs (Front L/R) 5 x Spring Clip Pairs (Center, Rear L/R, Height L/R) |
| Speaker System | |
| Speaker Type | Front, Center: Full-Range Bass Reflex, Passive Height, Surround: Full-Range Sealed, Passive Subwoofer: Bass Reflex, Powered |
| Drivers | Front: 1x 5" / 12 cm Cone Woofer, 1x 1" / 2.5 cm Balanced Dome Tweeter Each Center: 2x 3.25" / 8 cm Cone Woofers, 1x 1" / 2.5 cm Balanced Dome Tweeter Surround: 1x 3.25" / 8 cm Cone Each Height: 1x 3.25" / 8 cm Cone Each Subwoofer: 1x 10" / 25 cm Cone |
| Frequency Response | Front: 55 Hz to 50 kHz Center: 65 Hz to 50 kHz Surround, Height: 80 Hz to 20 kHz Subwoofer: 25 to 150 Hz |
| Output Sound Pressure Level | Front: 83 dB/W/m Center: 86 dB/W/m Surround: 81 dB/W/m Height: 82.5 dB/W/m Subwoofer: Not Specified by Manufacturer |
| Subwoofer Power Output | ≤120 W |
| Maximum Input Power | 130 W |
| Nominal Impedance | 6 Ohms |
| Physical Specifications | |
| Power Consumption | Receiver, Active: 490 W Receiver, Full Standby, HDMI CEC Standby: 0.1 W Receiver, On, No Sound: 43.2 W Receiver, HDMI Standby Through: 27.4 W Subwoofer: 35 W |
| Power Requirements | 120 VAC, 60 Hz |
| Dimensions | Receiver: 17.1 x 6.3 x 12.9" / 435 x 160 x 328 mm Each Front/Height Speaker: 6.1 x 18.39 x 7.21" / 155 x 467 x 183 mm Center Speaker: 16.1 x 4.53 x 4.76" / 409 x 115 x 121 mm Each Surround Speaker: 4.53 x 9.06 x 3.78" / 115 x 230 x 96 mm Subwoofer: 12.5 x 18.23 x 15.67" / 317.5 x 463 x 398 mm |
| Weight | Receiver: 18.1 lb / 8.2 kg Each Front/Height Speaker: 7.9 lb / 3.6 kg Center Speaker: 4.9 lb / 2.2 kg Each Surround Speaker: 2.2 lb / 1 kg Subwoofer: 21.2 lb / 9.6 kg |
