Product Description

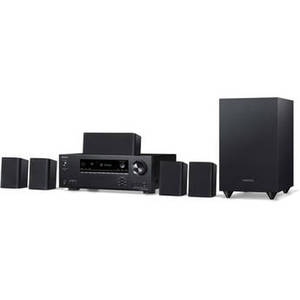

Enjoy an immersive surround sound experience with the Onkyo HT-S3910 5.1-Channel Home Theater System. It delivers up to 80W per channel at 8 ohms for robust audio playback. The receiver has built-in Bluetooth technology, which allows you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, tablets, and more.
Wired connectivity includes four HDMI inputs, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K resolution, HDR10, HLG, and Dolby Vision, which can be passed through to your display via the HDMI output; this output supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.
The included speaker package features a 5.1-channel configuration, with two front speakers, a center channel, two surround speakers, and a 6.44" down-firing passive subwoofer. The receiver also supports Dolby Atmos and DTS:X with these speakers in a 3.1.2-channel setup.
Wired connectivity includes four HDMI inputs, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K resolution, HDR10, HLG, and Dolby Vision, which can be passed through to your display via the HDMI output; this output supports ARC for the reproduction of display-based audio, such as that from built-in apps like Netflix or YouTube.
The included speaker package features a 5.1-channel configuration, with two front speakers, a center channel, two surround speakers, and a 6.44" down-firing passive subwoofer. The receiver also supports Dolby Atmos and DTS:X with these speakers in a 3.1.2-channel setup.
| Receiver | |
| Channels | 5.1 3.1.2 in Dolby Atmos or DTS:X Setups |
| Power Output per Channel | 80 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 Channels Driven, FTC 155 W per Channel @ 6 Ohms, 1 kHz, 10% THD, 1 Channel Driven Subwoofer: 80 W @ 8 Ohms, 100 Hz, 0.08% THD, FTC Subwoofer: 125 W @ 6 Ohms, 100 Hz, 10% THD |
| THD & Noise | 0.08% (20 Hz to 20 kHz, Half Power) |
| Input Sensitivity and Impedance | 200 mV RMS / 47 kohms (Line) |
| Tone Control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 109 dB (Line, IHF-A) |
| Speaker Impedance | 4 to 16 Ohms |
| Tuner Section | |
| Tuning Frequency Range | FM: 87.5 MHz to 107.9 MHz AM: 530 kHz to 1710 kHz |
| FM/AM Preset Memory | 40 Stations |
| Connectivity | |
| Bluetooth | Yes |
| Audio Return Channel (ARC) | Yes |
| Inputs | 4 x HDMI 1 x Optical TOSLINK 1 x RCA Digital Coaxial 3 x Stereo RCA 1 x 1/8" / 3.5 mm Aux (Front) |
| Outputs | 1 x HDMI 1 x 1/4" / 6.35 mm Headphone (Front) 1 x Stereo RCA Zone B 2 x Subwoofer Pre-Out |
| Other Connections | 1 x AM Antenna In 1 x FM Antenna In 1 x USB Type-A Power Out |
| Speaker Connectors | 2 x Banana Plug-Compatible Binding Post Pairs (Front L/R) 4 x Spring Clip Pairs (Rear/Height L/R, Center, Subwoofer) |
| Speaker System | |
| Channels | 5.1 |
| Speaker Type | Front, Center, Surround: Full-Range, Acoustic Suspension, Passive Subwoofer: Bass Reflex, Passive |
| Drivers | Front, Center, Surround: 1x 3" / 7.7 cm Cone Subwoofer: 1x 6.44" / 16 cm Cone |
| Frequency Response | Front, Surround: 80 Hz to 20 kHz Center: 70 Hz to 20 kHz Subwoofer: 28 Hz to 5 kHz |
| Output Sound Pressure Level | Front, Center, Surround: 80 dB/W/m Subwoofer: 78 dB/W/m |
| Maximum Input Power | Front, Center, Surround: 150 W Subwoofer: 120 W |
| Nominal Impedance | 6 Ohms |
| Physical Specifications | |
| Power Consumption | Active: 445 W Standby: 0.1 W |
| Power Requirements | 120 VAC, 60 Hz |
| Dimensions | Receiver: 17.1 x 6.3 x 12.9" / 435 x 160 x 328 mm Each Front/Surround Speaker: 3.9 x 5.5 x 4.2" / 98.5 x 140.5 x 106 mm Center Speaker: 9.6 x 3.8 x 4" / 244 x 96 x 102 mm Subwoofer: 9.1 x 15.3 x 13.1" / 230 x 389 x 331.5 mm |
| Weight | Receiver: 18.1 lb / 8.2 kg Each Front/Surround Speaker: 1.1 lb / 0.5 kg Center Speaker: 1.3 lb / 0.6 kg Subwoofer: 10.1 lb / 4.6 kg |
