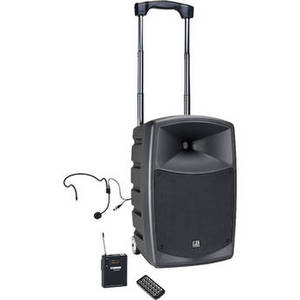

Roadbuddy 10 HS B5 Battery-Powered Bluetooth 10" Speaker with Bodypack and Headset Microphone


From LD Systems | Model #: LDRBUD10HSB5



See more in Electronics


Roadbuddy 10 HS B5 Battery-Powered Bluetooth 10" Speaker with Bodypack and Headset Microphone

Product Description

For special events, presentations, fitness instruction, and more, the LD Systems Roadbuddy 10 HS Battery-Powered Bluetooth Speaker with Bodypack and Headset Microphone delivers versatility and power in a portable package. The two-way speaker system consists of a 10" custom woofer and a 1" horn-loaded compression driver driven by 480W of Class-D amplification. With powering methods including an internal 8-hour rechargeable battery and an efficient switching power supply, the Roadbuddy 10 HS is ready for the road.

The Roadbuddy 10 HS features a headset microphone, a wireless bodypack transmitter, and a built-in UHF receiver, forming a reliable wireless system that operates in the 584 to 607 MHz frequency band. The integrated media player incorporates a backlit multifunction display, mode and transport buttons, and support for an array of music sources such as 3.5mm or RCA inputs, wireless streaming via Bluetooth, an SD card, or a USB flash drive. The included IR remote control provides comprehensive access to volume, EQ, track selection, and more. The onboard mixer also offers two XLR-1/4" combo jacks that are switchable for mic or line level, per-channel volume controls, 2-band EQ, echo, and master volume. The Roadbuddy 10 HS is easily transportable, thanks to built-in caster wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two handheld microphones. The Roadbuddy's polypropylene cabinet is durable, lightweight, and stand mountable.

Portable PA System
Speaker Configuration 1 x 2-Way Loudspeaker
Number of Input Channels 3 (2 x Mono, 1 x Stereo)
Amplifier Power Rating 120 W RMS
480 W Peak
Amplifier Class Class-D
Impedance
Speakers
Enclosure Type Bass-Reflex
Full-Range Driver
Full-Range Driver (Oval)
HF Driver 1" / 2.5 cm Horn-Loaded Compression Driver
HF Voice Coil
MF Driver
MF Voice Coil
LF Driver 10" / 25.4 cm Woofer
LF Voice Coil
Subwoofer Driver
Subwoofer Voice Coil
Magnet Ferrite
Speaker Sensitivity 96 dB
Signal Processing
Crossover
Input Pad
EQ HF Shelf
LF Shelf
Semi-Parametric EQ
Effects Echo (Type Unspecified)
DSP
Filters
Dynamic Processing
Microphone
Form Factor Headworn
Capsule
Polar Pattern
Output Connector TA3/Mini XLR Female
Operating Voltage
Microphone Sensitivity
Muting
Performance
Frequency Response Wireless:
50 Hz to 17 kHz
Speaker:
55 Hz to 18 kHz
Frequency Range
Maximum SPL 115 dB
Max Coverage Distance
Max Coverage Area
Coverage Angle
Coverage Angle
Input Sensitivity
Gain Range
Max Input Level
I/O Impedance
SNR
THD 0.002%
Dynamic Range
Protections Overcurrent, Short Circuit
Connectivity
Audio I/O 1 x 1/4" TS Unbalanced Line Output
2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1 x 1/8" / 3.5 mm TRS Unbalanced Line Input
1 x Stereo RCA Line Input
Phantom Power
USB USB Type-A (Media Playback)
Media Playback 1 x SD
Media & File Formats Supported MP3, WAV, WMA
Network I/O
Wireless Connectivity
Wireless
Wireless Transmission Bodypack Transmitter:
Analog UHF
Max Wireless Range
Number of RF Channels 16
RF Frequency Band 584 to 607 MHz
RF Bandwidth
Form Factor Transmitter:
1 x Bodypack
RF Output Power 10 mW
Transmitter I/O 1 x TA3/Mini XLR 3-Pin Male Input
Max Number of Simultaneous Transmitters
Diversity
Antenna Receiver:
TNC (Rear-Mount)
Squelch
Approximate RF Sensitivity
Deviation
Modulation FM
RF Channel Crosstalk
Spurious
Bluetooth
Bluetooth
Pairing Manual
Bluetooth Channel
Frequency
Bluetooth Power Class
Bluetooth Input Gain
Transmitter Power
Bluetooth Range 32.8' / 10 m
Power
Battery Type System:
2 x Rechargeable 12 V Lead-Acid
Bodypack Transmitter:
2 x AA (Not Included)
Approximate Battery Life 8 Hours
Battery Charging Time 10 Hours
Internal Battery Capacity 5 Ah
Battery Cycle Count
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Output
Current Consumption
Power Consumption
DC Input Power
AC Power Connector 1 x IEC Input
Physical
Cable Length
Transport Options 2 x Wheels (Bottom)
1 x Telescopic Handle (Top)
1 x Handle (Top)
Mounting 1.4" / 35.56 mm Pole Socket
Stand Height
Stand Load Capacity
Cooling
Construction Material ABS, Polypropylene
IP Rating
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature
Operating Humidity 10 to 70% (Recommended)
Dimensions 20.67 x 16.34 x 12.91" / 525 x 415 x 328 mm
Weight Bodypack Transmitter:
2.82 oz / 0.08 kg (without Batteries)
System:
36.4 lb / 16.5 kg
