Product Description

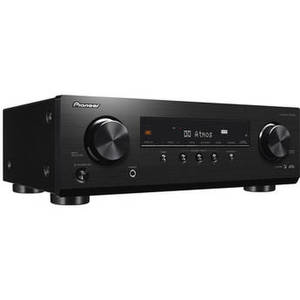

Enjoy 4K Ultra HD pass-through with HDR10, HLG, and Dolby Vision support via HDMI with the Pioneer VSX-534 5.2-Channel A/V Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound and supports the Dolby Atmos and DTS:X 3-dimensional audio formats. MCACC sound optimization allows you to tailor the sound to your room's specific acoustics.
Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The VSX-534 is equipped with four HDMI inputs and one HDMI output, which supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or YouTube apps.
Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The VSX-534 is equipped with four HDMI inputs and one HDMI output, which supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or YouTube apps.
| Amplifier | |
| Amplifier Type | |
| Channels | 5.2 |
| Number of Subwoofer Channels | |
| Amplifier Class | |
| Power Output per Channel | 1-Channel Driven: 150 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Dynamic Power per Channel | |
| Frequency Response | 10 Hz to 100 kHz +1/-3 dB (Direct Mode) |
| THD+N | 0.08% (20 Hz to 20 kHz, Half Power) |
| THD | |
| Residual Output Noise | |
| Channel Separation | |
| Speaker Impedance | 4 to 16 Ohms |
| Tone Control | Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB |
| Damping Factor | |
| Audio Processing | |
| DTS Compatibility | |
| Dolby Compatibility | |
| Auro 3D Support | |
| Upmixing Technology | |
| Supported File Formats | |
| Supported Sample Rates | |
| DAC | 384 kHz / 32-Bit (AK4438) |
| Video | |
| HDR Compatibility | |
| Pass-Through Support | |
| Upscaling | |
| GUI | |
| Connectivity | |
| Rear A/V Inputs | 4 x HDMI 1 x Digital Coaxial 1 x Optical TOSLINK 3 x Stereo RCA |
| Rear A/V Outputs | 1 x HDMI 1 x Stereo RCA Zone B 2 x RCA Subwoofer Pre-Out |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input |
| Headphone Output Power | |
| Other Rear I/O | 1 x USB-A (Power) Output 1 x AM Coaxial F-Type 1 x FM Coaxial F-Type |
| Speaker Connectors | 2 x Binding Post Pairs 3 x Spring Clip Pairs |
| HDCP Support | |
| HDMI Compression Modes | |
| Audio Return Channel (ARC) | |
| HDMI CEC | |
| Media Card Slot | |
| A/B Speaker Selection | |
| Bi-Amp Capability | |
| Input Impedance | Line: 47 Kilohms |
| Input Sensitivity | Line: 200 mV |
| Max Input Level | |
| Phono RIAA EQ Deviation | |
| Rated Output / Impedance | Subwoofer Pre-Out: 1 V / 470 Ohms Zone B Line-Out: 1 V / 2.3 Kilohms |
| Dynamic Range | |
| Signal to Noise Ratio | Line: 109 dB |
| Total Harmonic Distortion (THD) | |
| Channel Separation | |
| Crosstalk | |
| Wireless Connectivity | |
| Wi-Fi | None |
| Wireless Security | |
| Bluetooth | 4.2 |
| Bluetooth Profiles | |
| Supported Audio Codecs | AAC, SBC |
| Bluetooth Range | 49.2' / 15 m |
| Wireless Audio Protocols | |
| DLNA Support | |
| Control | |
| External Control Support | |
| Virtual Assistant | |
| Tuner Section | |
| Tuner Type | |
| Number of Tuner Presets | 40 Stations |
| Radio Frequencies | AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz |
| Sensitivity | FM Mono at 50 dB: 1 µV / 11.2 dBf |
| Signal to Noise Ratio | |
| Distortion | |
| Power | |
| AC Input Power | 120 VAC, 60 Hz |
| AC Power Output | |
| Power Consumption | Active: 445 W No Sound: 38.6 W Standby: 0.1 W CEC Standby: 0.1 W HDMI Standby Through: 25.7 W |
| Physical | |
| Dimensions (W x H x D) | 17.1 x 5.8 x 12.6" / 435.0 x 148.0 x 321.0 mm |
| Weight | 17.6 lb / 8 kg |
