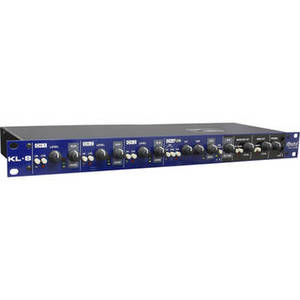

KL-8 Rackmount Keyboard Mixing Station
Product Description
The KL-8 is a single rack unit designed to route analog 1/4" inputs and outputs, effects, 3-pin XLR main, 3-pin XLR monitor outputs, and 1/4" TRS headphone outputs to provide easy access in one location. It is also a powerful digital interface with MIDI and USB connections that make it easy to control a laptop soft-synth utilizing high-quality 24-bit/192 kHz digital audio converters.
Other features include: stereo insert points for a single volume pedal to control all your keyboard outputs and redundant USB connections to have a backup laptop plugged in and ready to go. This is useful for keyboard players who control playback for backing tracks during performances. Additionally, a link feature can be used to connect multiple units together and expand the KL-8 inputs to suit larger keyboard rigs.
| Analog Inputs | 4 x 1/4" / 6.3 mm Inputs:Maximum: +18 dBu (+16 dBV) Input Impedance: 14.3 to 20 kOhms (Input Level Max / Input Level Min) Input Gain Range: -80 to +18 dB |
| Auxiliary Input | 2 x 1/4" / 6.3 mm Maximum Input: +11 dBu Input Impedance: 33 kOhms Input Gain Range: -80 to +25 dB |
| Auxiliary Output | Maximum Output: +18 dBu Output Impedance: 2.2 kOhms Input Gain Range: -80 to +2 dB |
| Outputs Connectivity | Main Outputs: 2 x 3-Pin XLR Monitor Outputs: 2 x 3-Pin XLR Maximum Output: +28 dBu Output Impedance: 1.1 kOhms Input Gain Range: -80 to +18 dB Dynamic Range: 90 dB Referred to +28 dBu, 102 dB A-Weighted THD+N: 0.01% (100 Hz to 20 kHz @ 0 dBu) (-80 dB) |
| Headphone Outputs | 2 x 1/4" / 6.3 mm TRS Jacks Maximum Output: 0.4 W into 15 Ohms (8.3 VRMS Max) Output Impedance: 51 Ohms Input Gain Range: -80 dB to +10 dB |
| USB | Bit Depth / Sample Rate: 24-Bit / 44.1, 88.2, 176.4, or 192 kHz |
| Frequency Response | All Outputs: 20 Hz to 20 kHz ±0.5 dB |
| Power | 100 to 240 VAC Locking 4-Pin XLR |
| Dimensions | 19.0 x 7.0 x 1.6" / 48.3 x 17.8 x 4.1 cm |
| Weight | 6.25 lb / 2.83 kg |
