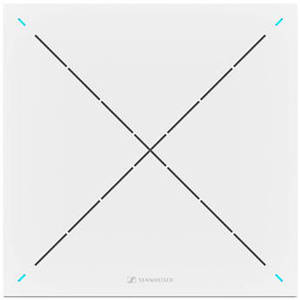

TeamConnect SL Ceiling 2 Microphone Array
Product Description
The TeamConnect SL Ceiling 2 Microphone Array from Sennheiser is designed to provide better audio quality for voice and video conferences. It features adaptive beamforming technology that automatically follows the active speaker's voice, letting people speak naturally whether they are sitting, standing, or walking around the room.
TeamConnect Ceiling 2 offers great versatility and interoperability with support for Dante networks and POE (Power over Ethernet). It is compatible with Sennheiser's Control Cockpit software for efficient remote management and offers remote configuration and monitoring via an open media control protocol (API), allowing for easy integration into media systems. A 3-pin Phoenix connector and eight self-adhesive rubber feet are also included.
| Audio Output | 1 x 3-Pin Terminal (Fits Phoenix Contact MCVW 1.5-3-ST-3.81) 2 x Digital Dante Network Audio (RJ-45 Primary and Secondary) |
| Ethernet Control | 1 x RJ-45 Ethernet Port for PoE Power Supply and Data/ControlCommunication |
| Supply Voltage | 44 to 57 VDC PoE IEEE 802.3af Class 3 |
| Power Consumption | Maximum 8.8 W |
| Plenum Rating | Tested According to UL 2043 |
| Transducer Principle | Pre-Polarized Condenser Microphone |
| AF Frequency Response | 160 Hz to 18 kHz |
| Sensitivity | 0 dBV/Pa (988 mV/Pa) |
| Signal to Noise Ratio | 83 dB (A) |
| Latency | 4 ms |
| Equivalent Noise Level | 11 dB (A) |
| Polar Pattern (Microphone) | 28 Capsules |
| Pick Up Pattern | Beam Pattern |
| Max Sound Pressure | 104 dB SPL |
| Dynamic Range | 93 dB (A) |
| Temperature | Operation: 32 to 104°F / 0 to 40°C Storage: 14 to 140°F / -10 to 60°C |
| Humidity (Relative) | 20 to 95% Non-Condensing |
| Dimensions | 23.2 x 23.2 x 1.7" / 59 x 59 x 4.3 cm |
| Weight | 12.5 lb / 5.7 kg |
