AT-LP140XP Direct Drive Professional DJ Turntable (Black)

Product Description

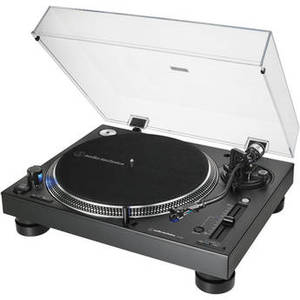

The black Audio-Technica Consumer AT-LP140XP Direct Drive Professional DJ Turntable delivers a host of features that are suitable for use in nightclub DJ booths and mobile and home DJ applications. The AT-LP140XP features a rugged cast aluminum construction that houses a high-torque DC motor and a balanced S-shaped tonearm. The AT-XP3 DJ cartridge is included and premounted to an AT-HS6 universal 1/2"-mount headshell.
Additional professional features include a start/stop button, forward and reverse play, selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with ±8%, ±16%, and ±24% adjustment ranges, a stroboscopic platter with speed indicator, a retractable plug-type stylus target light, and a removable hinged dust cover. The Audio-Technica AT-LP140XP also includes a counterweight, felt mat, and 45 rpm adapter.
Additional professional features include a start/stop button, forward and reverse play, selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with ±8%, ±16%, and ±24% adjustment ranges, a stroboscopic platter with speed indicator, a retractable plug-type stylus target light, and a removable hinged dust cover. The Audio-Technica AT-LP140XP also includes a counterweight, felt mat, and 45 rpm adapter.
Cartridge Specifications | |
Cartridge | AT-XP3 |
Frequency Response | 20 Hz to 18 kHz |
Channel Separation | >20 dB at 1 kHz |
Tracking Force | Vertical Tracking Force: 2.0 to 4.0 g (3.0 g Standard) |
Stylus | Stylus Construction: Bonded Round Sank Stylus Shape: 0.6 mm Conical Stylus Cantilever: Carbon Fiber-Reinforced ABS |
Output | 5.5 mV at 1 kHz, 5 cm/sec |
Channel Balance | 2.0 dB (1 kHz) |
Mount | 0.5" / 12.7 mm |
Replacement Stylus | ATN-XP3 |
Turntable | |
Type | 3-Speed, Fully Manual |
Motor | Direct Drive High-Torque DC Motor |
Speeds | 33 1/3, 45, 78 rpm |
Pitch Control Range | ±8%, ±16%, and ±24% |
Turntable Platter | Die-Cast Aluminum |
Torque | Starting Torque: >2.2 kgf cm |
Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) |
Signal-to-Noise Ratio | >50 dB |
Output Level | 5.5 mV nominal at 1 kHz, 5 cm/sec |
Tonearm | |
Type | Balanced S-Shaped Tonearm with Detachable Headshell |
Effective Arm Length | 9.1" / 230.5 mm |
Overhang | 0.6" / 16.0 mm |
Tracking Error Angle | <3° |
Cartridge Weight | Applicable Cartridge Weight: 3.5 to 8.5 g |
Anti-Skating Range | 0 to 4 g |
Replacement Stylus | ATN-XP3 |
General Specifications | |
Power | Power Supply Requirements: 115/230 VAC, 60/50 Hz Power Consumption: 11 W |
Dimensions | 17.8 x 13.9 x 6.2" / 452.1 x 352.0 x 158.5 mm |
Weight | 22.0 lb / 10.0 kg |
