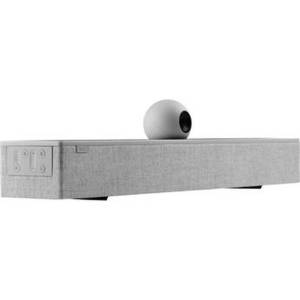

ACV-5100 Acendo Vibe Conferencing Soundbar with Integrated Webcam (Gray)

Product Description
The gray AMX ACV-5100 Acendo Vibe is a conferencing soundbar and camera system offering seamless two-way audio/video communication for livestreaming, meetings, conferences, E-Learning, and training sessions. Featuring stereo speakers, a dual far-field mic array, echo cancellation, and ambient noise reduction from JBL, the Acendo Vibe reliably delivers clear sound with low noise, allowing everyone in the room to hear and be heard. The 110° FoV wide-angle camera is designed to show all meeting participants, even those close to the display. HDMI I/O connectivity supports up to 4K video resolution and uncompressed stereo PCM audio. Pair a smartphone, tablet, or laptop to the built-in Bluetooth receiver, or connect non-Bluetooth computers to the USB Type-B port. Hook up external audio devices to the 3.5mm stereo analog I/O and TOSLINK optical stereo digital input. Euroblock RS-232 sockets are provided for compatibility with serial commands and a motion sensor. The rear-panel hinged wallmount bracket also functions as a connector bay door, and incorporates built-in cable management for tidy connection and placement of all cabling prior to installation. Once installed, the ACV-5100 Acendo Vibe can be operated via the included Bluetooth remote control, which boasts convenient access to functions such as volume, mute, source select, and end call.
| Sensor | |
| Resolution and Frame Rate | 1080p at up to 30 fps |
| Number of Lenses | 1 |
| Sensor Type | 1/2.7"-Type CMOS Sensor |
| Sensor Resolution | |
| Field of View | 110° |
| Zoom | None |
| Pan | 350� (-175 to 175�) |
| Tilt | 20� (-5 to 15�) |
| General | |
| Host Connection | USB Type-B USB 2.0 |
| Additional I/O | 1 x 1/8" / 3.5 mm Input 1 x TOSLINK Input 1 x 1/8" / 3.5 mm Output 1 x HDMI Type-A Input 1 x HDMI Type-A Output 1 x USB Type-B |
| Focus Type | Fixed |
| Focus Range | |
| Bluetooth | 4.0 |
| Wi-Fi | |
| Power Source | AC Adapter |
| Low-Light Correction | No |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| OS Compatibility | |
| Microphone | |
| Microphone | Yes |
| Polar Pattern | |
| Frequency Range | |
| Microphone Features | Noise Cancellation |
| Frequency Mode | |
| Cancellation Technology | Echo |
| Speakers | |
| Built-In Speakers | 2 x 10 W |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 5 to 85% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | |
| Physical | |
| Lens Material | |
| Privacy Shutter | No |
| Security | None |
| Attachment Method | |
| Built-In Light | No |
| Certifications | CE, EN60950-1, FCC *as per Manufacturer |
| Housing Material | |
| Cable Length | |
| Dimensions (W x H x D) | 23.2 x 5.3 x 4.1" / 59.0 x 13.3 x 10.5 cm (Including Spacer) 23.2 x 5.3 x 3.9" / 59.0 x 13.3 x 10.0 cm |
| Weight | 103.4 oz / 2930 g |
