Product Description

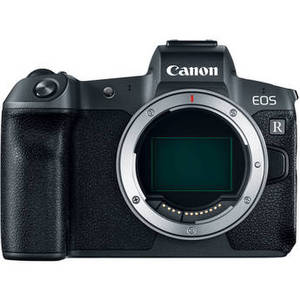

The first step in Canon's mirrorless evolution, the EOS R pairs a redeveloped lens mount and updated full-frame image sensor for a unique and sophisticated multimedia camera system. Revolving around the new RF lens mount, the EOS R is poised to be the means from which to make the most of a new series of lenses and optical technologies.
Focusing on the camera itself, the EOS R features a high-resolution 30.3MP full-frame CMOS sensor along with a DIGIC 8 image processor. The combination of these technologies offers a wide sensitivity range up to a native ISO 40000, fast continuous shooting to 8 fps, and UHD 4K30 video recording. In addition to imaging, the sensor also facilitates an advanced Dual Pixel CMOS AF system, which uses 5655 selectable points for quickly and accurately acquiring focus. This focusing system is also sensitive down to EV -6 for working in impressively dark conditions. The AF system is also perfectly matched to the UHD 4K video recording capabilities, which are also rounded out by Movie Digital IS to minimize camera shake, built-in Canon Log gamma for a greater dynamic range, and 4K 10-bit 4:2:2 output over HDMI for even greater color control.
Beyond the performance attributes, this camera has been designed from the ground up and features a high-resolution 3.69m-dot OLED electronic viewfinder for clear and bright eye-level viewing. Conversely, a rear 3.15" 2.1m-dot LCD touchscreen is also featured, and has a swivel design to suit working from high and low angles. Also catering to the tactile cravings is a Multi-Function bar, which is customizable for intuitively adjusting shooting settings. And as a camera built to withstand the toughest environments, the magnesium alloy body is dust and moisture-sealed.
Focusing on the camera itself, the EOS R features a high-resolution 30.3MP full-frame CMOS sensor along with a DIGIC 8 image processor. The combination of these technologies offers a wide sensitivity range up to a native ISO 40000, fast continuous shooting to 8 fps, and UHD 4K30 video recording. In addition to imaging, the sensor also facilitates an advanced Dual Pixel CMOS AF system, which uses 5655 selectable points for quickly and accurately acquiring focus. This focusing system is also sensitive down to EV -6 for working in impressively dark conditions. The AF system is also perfectly matched to the UHD 4K video recording capabilities, which are also rounded out by Movie Digital IS to minimize camera shake, built-in Canon Log gamma for a greater dynamic range, and 4K 10-bit 4:2:2 output over HDMI for even greater color control.
Beyond the performance attributes, this camera has been designed from the ground up and features a high-resolution 3.69m-dot OLED electronic viewfinder for clear and bright eye-level viewing. Conversely, a rear 3.15" 2.1m-dot LCD touchscreen is also featured, and has a swivel design to suit working from high and low angles. Also catering to the tactile cravings is a Multi-Function bar, which is customizable for intuitively adjusting shooting settings. And as a camera built to withstand the toughest environments, the magnesium alloy body is dust and moisture-sealed.
| Imaging | |
| Lens Mount | Canon RF |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Actual: 31.7 Megapixel Effective: 30.3 Megapixel (6720 x 4480) |
| Sensor Type | 36 x 24 mm (Full-Frame) CMOS |
| Crop Factor | |
| Image Stabilization | Digital (Video Only) |
| Mirror Lock-Up | |
| Built-In ND Filter | None |
| Capture Type | Stills & Video |
| Exposure Control | |
| Shutter Type | Electronic Shutter |
| Shutter Speed | Electronic Front Curtain Shutter 1/8000 to 30 Seconds |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity | Photo 100 to 40,000 in Auto Mode (Extended: 50 to 102,400) Video 100 to 25,600 (Extended: 100 to 102,400) |
| Metering Method | Center-Weighted Average, Evaluative, Partial |
| Exposure Modes | Aperture Priority, Manual, Shutter Priority |
| Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Metering Range | -3 to 20 EV |
| Metering Range | |
| White Balance | Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
| Continuous Shooting | Up to 8 fps at 30.3 MP for up to 47 Frames (Raw) / 100 Frames (JPEG) Up to 3 fps at 30.3 MP for up to 47 Frames (Raw) / 100 Frames (JPEG) Up to 2.2 fps at 30.3 MP for up to 47 Frames (Raw) / 100 Frames (JPEG) |
| Interval Recording | |
| Self-Timer | 2/10-Second Delay |
| Still Image Capture | |
| Image Sizes | 3:2 Raw 6720 x 4480 4:3 Raw 5952 x 4480 16:9 Raw 6720 x 3776 1:1 Raw 4480 x 4480 3:2 DCF / EXIF / JPEG 6720 x 4480 4464 x 2976 3360 x 2240 2400 x 1600 4:3 DCF / EXIF / JPEG 5952 x 4480 3968 x 2976 2976 x 2240 2112 x 1600 16:9 DCF / EXIF / JPEG 6720 x 3776 4464 x 2412 3360 x 1888 2400 x 1344 1:1 DCF / EXIF / JPEG 4480 x 4480 2976 x 2976 2240 x 2240 1600 x 1600 |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | JPEG, Raw |
| Bit Depth | 14-Bit |
| Video Capture | |
| Internal Recording Modes | H.264/MP4 UHD 4K (3840 x 2160) at 23.98/24.00/25/29.97 fps 1920 x 1080p at 23.98/24.00/25/29.97/50/59.94 fps 1280 x 720 at 25/29.97/50/59.94/100/119.88 fps |
| External Recording Modes | 4:2:2 10-Bit via HDMI UHD 4K (3840 x 2160) |
| Sensor Crop Modes | |
| Sensor Crop While Recording | |
| Fast-/Slow-Motion Support | |
| Gamma Curve | |
| Recording Limit | Up to 30 Minutes |
| Broadcast Output | NTSC/PAL |
| IP Streaming | None |
| Built-In Microphone Type | Stereo |
| Audio Recording | AAC Audio 2-Channel LPCM Audio |
| Interface | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
| Internal Memory | |
| Video I/O | 1 x Mini-HDMI Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input |
| Power I/O | 1 x USB-C Input/Output |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data Input/Output (Shared with Power Input) 1 x Canon E3 (2.5 mm Sub-Mini) Input |
| Wireless | Wi-Fi, Bluetooth |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Monitor | |
| Size | 3.15" |
| Resolution | 2,100,000 Dot |
| Display Type | Articulating Touchscreen LCD |
| Secondary Display | Top: Status Display |
| Viewfinder | |
| Type | Built-In Electronic |
| Size | 0.5" |
| Resolution | 3,690,000 Dot |
| Eye Point | 23 mm |
| Coverage | 100% |
| Magnification | Approx. 0.71x |
| Diopter Adjustment | -4 to +2 |
| Focus | |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Continuous-Servo AF, Manual Focus, Single-Servo AF |
| Autofocus Points | Phase Detection: 5655 |
| Autofocus Sensitivity | -6 to +18 EV |
| Flash | |
| Built-In Flash | No |
| Flash Modes | Flash On, Slow Sync |
| Guide Number | |
| Maximum Sync Speed | |
| Maximum Sync Speed | |
| Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) |
| Dedicated Flash System | eTTL |
| External Flash Connection | Hot Shoe |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 0 to 85% |
| Storage Humidity | |
| General | |
| Battery Type | 1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh |
| PoE Support | |
| Power Consumption | |
| Netflix Approved | |
| Tripod Mounting Thread | 1 x 1/4"-20 Female (Bottom) |
| Accessory Mount | 1 x Hot Shoe Mount |
| Material of Construction | Magnesium Alloy, Polycarbonate |
| Dimensions (W x H x D) | 5.3 x 3.9 x 3.3" / 135.8 x 98.3 x 84.4 mm |
| Weight | 1.45 lb / 660 g (With Battery, Recording Media) |
| Kit Lens | |
| Focal Length | |
| Maximum Aperture | |
| Minimum Aperture | |
| Angle of View | |
| Area of Coverage | |
| Maximum Magnification | |
| Macro Reproduction Ratio | |
| Minimum Focus Distance | |
| Optical Design | |
| Diaphragm Blades | |
| Focus Type | |
| Image Stabilization | |
| Filter Size | |
| Leaf Shutter | |
| Dimensions (� x L) | |
| Length at Maximum Extension | |
| Weight | |
| Second Kit Lens | |
| Focal Length | |
| Maximum Aperture | |
| Minimum Aperture | |
| Angle of View | |
| Maximum Magnification | |
| Macro Reproduction Ratio | |
| Minimum Focus Distance | |
| Optical Design | |
| Diaphragm Blades | |
| Focus Type | |
| Image Stabilization | |
| Filter Size | |
| Dimensions (� x L) | |
| Length at Maximum Extension | |
| Weight |
