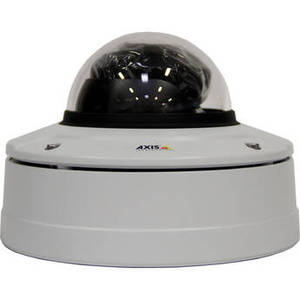

Q35 Series Q3518-LVE 4K UHD Outdoor Network Dome Camera


From Axis Communications | Model #: AX01493001



See more in Cameras


Q35 Series Q3518-LVE 4K UHD Outdoor Network Dome Camera

Product Description

The Q35 Series Q3518-LVE 4K UHD Outdoor Network Dome Camera from Axis Communications uses a 1/1.7" progressive scan CMOS sensor to capture 4K UHD video at up to 30 fps. IR LEDs provide up to 130' of illumination in low-light conditions. The 4.3-8.6mm Varifocal lens delivers a 93-48° horizontal field of view and 2x optical zoom. Two-way audio is supported thanks to a mic/line input and line output. An onboard microSD/SDHC/SDXC card slot is available for storage (microSD cards are available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a host of safety features, including password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access logging, and centralized certificate management.

This dome camera is ONVIF-compliant for profiles S and G, making it compatible with a wide range of surveillance devices. The camera's housing is IP69K-, NEMA 4X-, and IK10-rated for outdoor use in areas at risk of vandalism.
Camera
Sensor 8 MP 1/1.7" CMOS
Lens Mount
Focal Length 4.3 to 8.6mm
Maximum Aperture f/1.5
Zoom Optical: 2x
Lens Field of View Horizontal: 93 to 48°
Vertical: 51 to 27°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.15 Lux
B&W: 0.03 Lux
Shutter Speed 1/28500 to 2 Seconds
Camera Angle Adjustment Horizontal: 0 to 360°
Vertical: -80 to 80°
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 3840 x 2160 at 30 fps
Supported Video Compression H.264, MJPEG
Multi-View Streaming Yes, 8 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, G.726, LPCM, Opus
Built-In Mic No
Built-In Speaker
Audio I/O Input:
1/8" / 3.5 mm
Output:
1/8" / 3.5 mm
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log
Supported Protocols ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SSH, SSL/TLS, TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) Open API for Software Integration, Including VAPIX & AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection, ONVIF Profiles S & G
Analytics Included: AXIS Loitering Guard, AXIS Motion Guard, AXIS Fence Guard, AXIS Video Motion Detection, Active Tampering Alarm, Audio Detection Supported: AXIS Digital Autotracking, AXIS Perimeter Defender Support for AXIS Camera Application Platform Enabling Installation of Third-Party Applications
Built-In Installation Aids Remote Zoom, Remote Focus, Pixel Counter, Leveling Assistant, Autorotation
OS Compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O
Hardware
Memory 1 GB RAM / 512 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W), PoE 802.3at (30 W)
Power Consumption PoE: 7.1 W
DC: 7.7 W
Environmental
Operating Temperature -58 to 140°F / -50 to 60°C
Startup Temperature
Storage Temperature -40 to 149°F / -40 to 65°C
Operating Humidity 10 to 100%
IP Rating IP69K
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination 850 nm IR LEDs up to 130' / 39.62 m
Video Management Software AXIS Companion, AXIS Camera Station, VMS from Axis' Application Development Partners
Supported Languages English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese
Certifications
Material of Construction Aluminum, Polymer
Dimensions �: 7.2 x H: 7.2" / �: 183.0 x H: 182.0 mm
Weight 4.41 lb / 2 kg
