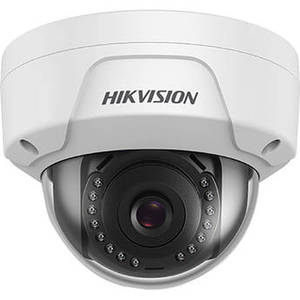

ECI-D12F2 2MP Outdoor Network Dome Camera with Night Vision & 2.8mm Lens
Product Description
The ECI-D12F2 2MP Outdoor Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. IR LEDs provide up to 100' of night vision. The camera's 2.8mm fixed lens delivers a 114° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
This dome camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. The camera's metal enclosure is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 114° Vertical: 62° Diagonal: 135° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.028 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 70° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G, ISAPI |
| Analytics | Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of January, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | None |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 5 W PoE: 7 W |
| Environmental | |
| Operating Temperature | -22 to 122°F / -30 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 100' / 30.48 m |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 4.4 x H: 3.2" / �: 111.0 x H: 82.4 mm |
| Weight | 0.9 lb / 410 g |
