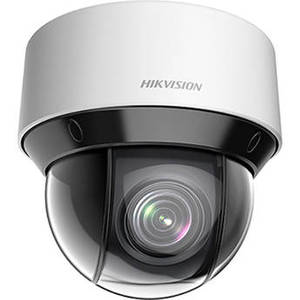

DS-2DE4A225IW-DE 2MP Outdoor PTZ Network Dome Camera with Night Vision
Product Description
The DS-2DE4A225IW-DE 2MP Outdoor PTZ Network Dome Camera from Hikvision uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Smart IR provides up to 165' of night vision. The 4.8-120mm varifocal lens delivers a 57.6 to 2.5° horizontal field of view. The camera features endless panning, a -5 to 90° tilt range, and 25x optical zoom. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is IP66 rated for outdoor use.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 4.8 to 120mm |
| Maximum Aperture | f/1.6 to 22 |
| Zoom | Optical: 25x Digital: 16x |
| Lens Field of View | Horizontal: 57.6 to 2.5° Vertical: 34.4 to 1.4° Diagonal: 64.5 to 2.9° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/30000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 60 fps (16.384 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 360° at 300°/s Programmed Tilt: 95° (-5 to 90°) at 160°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | Open API Supports ONVIF Profiles S & G, ISAPI, CGI, Hikvision SDK, and Third-Party Management Platforms |
| Analytics | Motion Detection Video Tampering Detection Exception Detection Audio Exception Detection Face Detection Intrusion Detection Line Crossing Detection Region Entrance Detection Region Exiting Detection Unattended Baggage Detection Object Removal Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of February, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | 18 W |
| Environmental | |
| Operating Temperature | -22 to 149°F / -30 to 65°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 90% |
| IP Rating | IP66 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 165' / 50.3 m |
| Video Management Software | iVMS-4200, iVMS-4500, Hik-Connect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum, Plastic, Polymer, Stainless Steel |
| Dimensions | �: 6.7 x H: 6.3" / �: 169.0 x H: 161.0 mm |
| Weight | 5.4 lb / 2.45 kg |
