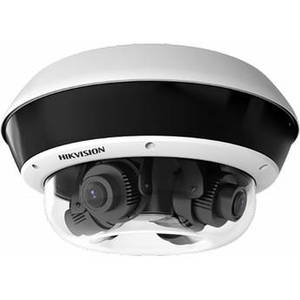

PanoVu Series DS-2CD6D54FWD-IZHS 20MP Outdoor 4-Sensor Network Dome Camera with Night Vision & Heater
Product Description
The DS-2CD6D54FWD-IZHS from Hikvision is a multi-sensor camera that uses four 1/2.7" progressive scan CMOS sensors to capture video at a total resolution of 10240 x 1920. Each sensor captures 2560 x 1920 resolution video at 24 fps. IR LEDs provide up to 98' of night vision. The camera is equipped with four 2.8-12mm varifocal lenses. Two-way audio communication is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 128GB (available separately). Integrated PoE technology simplifies connectivity by transferring power and data through a single cable.
This camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. It is equipped with a built-in heater. The camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 x 5 MP 1/2.7" CMOS |
| Lens Mount | M14 |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.6 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 101 to 30° Vertical: 73 to 22.4° Diagonal: 137 to 37° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.006 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/25 Seconds |
| Camera Angle Adjustment | Horizontal: -180 to 180° Vertical: 0 to 135° |
| DORI Coverage | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 24 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G |
| Analytics | Motion Detection Line Crossing Detection Intrusion Detection Region Entrance Detection Region Exiting Detection Unattended Baggage Detection Object Removal Detection Face Detection Scene Change Detection Defocus Detection Audio Exception Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of January, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3bt (60 W) |
| Power Consumption | DC: 28 W (With Heater) PoE+: 34 W (With Heater) |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) |
| Illumination | 850 nm IR LEDs up to 98.43' / 30 m |
| Video Management Software | iVMS-4200 |
| Supported Languages | |
| Certifications | |
| Material of Construction | Aluminum, Plastic |
| Dimensions | �: 11.4 x H: 5.7" / �: 290.0 x H: 145.5 mm |
| Weight | 10.3 lb / 4.67 kg |
