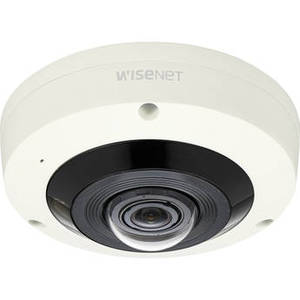

WiseNet X Series XNF-8010RV 6MP Outdoor Network Fisheye Dome Camera with Night Vision (RJ45)

Product Description
Capture a 6MP 360° view of your property day and night with the ivory WiseNet X Series XNF-8010RV 6MP Outdoor Network Dome Camera with RJ45 connector from Hanwha Techwin. Equipped with a 1/1.8" 6MP CMOS sensor and a 1.6mm fisheye lens, the XNF-8010RV delivers resolutions up to 2048 x 2048 at 30 fps in a 192 x 192° field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 49'. Built-in image enhancement features including wide dynamic range and automatic white balance allow you to capture images in varying lighting conditions.
The XNF-8010RV is IP66 and IK10 rated for weather and vandal resistance. PoE enables you to run just one wire for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
The XNF-8010RV is IP66 and IK10 rated for weather and vandal resistance. PoE enables you to run just one wire for both data and power while ONVIF compliance ensures compatibility with a wide range of surveillance devices.
| Camera | |
| Sensor | 6 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 1.6mm |
| Maximum Aperture | f/1.6 |
| Zoom | Digital: 8x |
| Lens Field of View | Horizontal: 192° Vertical: 192° Diagonal: 192° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0 Lux |
| Shutter Speed | 1/12000 to 2 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2048 x 2048 at 15/30 fps 2048 x at 15/3/6 fps 2048 x at 10/24 fps 2048 x at 5/12 fps 1024 x at 7/6/8 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, ADPCM, G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | No |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G, SUNAPI, Wisenet Open Platform |
| Analytics | Tampering, Loitering, Directional Detection, Virtual Line, Enter/Exit, (Dis)Appear, Audio Detection, Sound Classification, People Counting, Heatmap, Queue Management |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.10 to 10.12 *As of January, 2019: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | Local PC, NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 12 W PoE: 12.95 W |
| Environmental | |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Startup Temperature | |
| Storage Temperature | -58 to 140°F / -50 to 60°C |
| Operating Humidity | 0 to 89% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 49.2' / 15 m |
| Video Management Software | SmartViewer, SSM |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 5.7 x H: 2.6" / �: 146.0 x H: 65.8 mm |
| Weight | 1.73 lb / 785 g |
