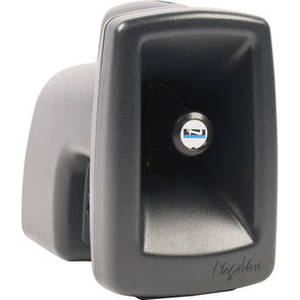

MEGA2 MegaVox 2 Portable PA System with Bluetooth


From Anchor Audio | Model #: ANMEGA2



See more in Electronics


MEGA2 MegaVox 2 Portable PA System with Bluetooth

Product Description

The Anchor Audio MEGA2 is a MegaVox 2 portable PA system with a built-in Bluetooth receiver. With 20W of rated output power driving a high-efficiency, re-entrant horn driver to produce 119 dB SPL, it is designed to deliver powerful amplification in a compact housing for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events.

The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two 1/4" mic inputs and a 1/4" line input provide connectivity for wired mics, instruments, and line-level sources. The 1/4" line output can be routed to an audio recorder, while the 1/4" speaker output can power a MegaVox 2 companion speaker (available separately). Integrated mixer functions include volume controls for each source and a signal alert with adjustable level.

Power the MEGA2 via AC power or the built-in rechargeable lithium-ion battery, which offers approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simplify physical setup of the system. An AC power supply is included.

Portable PA System
Speaker Configuration
Number of Input Channels
Amplifier Power Rating 20 W
Amplifier Class
Impedance
Speakers
Enclosure Type
Full-Range Driver
Full-Range Driver (Oval)
HF Driver 1 x Horn
HF Voice Coil
MF Driver
MF Voice Coil
LF Driver
LF Voice Coil
Subwoofer Driver
Subwoofer Voice Coil
Magnet
Speaker Sensitivity
Crossover
Input Pad
EQ
Semi-Parametric EQ
Effects
DSP
Filters
Dynamic Processing
Form Factor
Capsule
Polar Pattern
Output Connector
Operating Voltage
Microphone Sensitivity
Muting
Performance
Frequency Response 400 Hz to 10 kHz ±3 dB
Frequency Range
Maximum SPL 119 dB
Max Coverage Distance
Max Coverage Area
Coverage Angle
Coverage Angle
Input Sensitivity
Gain Range
Max Input Level
I/O Impedance
SNR
THD
Dynamic Range
Protections
Connectivity
Audio I/O 2 x 1/4" TS Unbalanced Mic Input
1 x 1/4" TS Unbalanced Line Input
1 x 1/4" TRS Unbalanced Line Output
1 x 1/4" TRS Unbalanced Speaker Output
Phantom Power
USB
Media Playback
Media & File Formats Supported
Network I/O
Wireless Connectivity
Wireless
Wireless Transmission 1.9 GHz
Max Wireless Range RF Wireless:
300' / 91.4 m (Line of Sight)
Number of RF Channels
RF Frequency Band 902 to 928 MHz
RF Bandwidth
Form Factor
RF Output Power
Transmitter I/O
Max Number of Simultaneous Transmitters
Diversity
Antenna
Squelch
Approximate RF Sensitivity
Deviation
Modulation
RF Channel Crosstalk
Spurious
Bluetooth
Bluetooth
Bluetooth Profiles
Pairing
Bluetooth Channel
Frequency
Bluetooth Power Class 1
Bluetooth Input Gain
Transmitter Power
Bluetooth Range
Power
Battery Type 1 x Built-In Rechargeable 12 V Lithium-Ion
Approximate Battery Life 8 Hours
Battery Charging Time
Internal Battery Capacity 5 Ah
Battery Cycle Count
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Output 19 VDC
Current Consumption
Power Consumption 60 W (Max)
DC Input Power
AC Power Connector
Physical
Cable Length
Transport Options
Mounting
Stand Height
Stand Load Capacity
Cooling
Construction Material
IP Rating
Operating Temperature
Storage Temperature
Operating Humidity
Dimensions 14 x 8.5 x 3" / 35.6 x 21.6 x 7.6 cm
Weight 13 lb / 5.9 kg
