LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver


From Anchor Audio | Model #: ANLIB2U2



See more in Electronics


LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver

Product Description

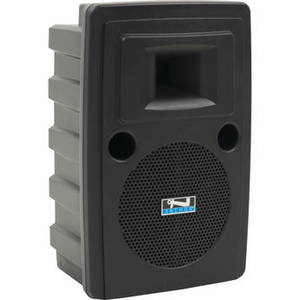

The Anchor Audio LIB2-U2 is a Liberty 2 portable PA system with Bluetooth and a dual wireless microphone receiver. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events.

The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The balanced 1/4" output can be routed to another PA system or an audio recorder, while the 4-pole speakON output can power a Liberty 2 companion speaker (available separately). Integrated mixer functions include volume controls and 2-band equalization.

Power the Liberty 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simply physical setup of the system.

Portable PA System
Speaker Configuration
Number of Input Channels
Amplifier Power Rating 125 W (AC Power)
100 W (Battery Power)
Amplifier Class
Impedance
Speakers
Enclosure Type
Full-Range Driver
Full-Range Driver (Oval)
HF Driver 1 x Compression Driver
HF Voice Coil
MF Driver
MF Voice Coil
LF Driver 1 x 10" / 25.4 cm Woofer
LF Voice Coil
Subwoofer Driver
Subwoofer Voice Coil
Magnet HF Driver:
Ceramic
Speaker Sensitivity
Crossover
Input Pad
EQ
Semi-Parametric EQ
Effects
DSP
Filters
Dynamic Processing
Form Factor
Capsule
Polar Pattern
Output Connector
Operating Voltage
Microphone Sensitivity
Muting
Performance
Frequency Response 60 Hz to 15 kHz ±3 dB
Frequency Range
Maximum SPL 117 dB
Max Coverage Distance
Max Coverage Area
Coverage Angle
Coverage Angle
Input Sensitivity Lo-Z Mic Input:
-52 dBV / 2.5 mVrms
Hi-Z Mic Input:
-43 dBV / 7.5 mVrms
Aux Input:
-14 dBV / 200 mVrms
Gain Range
Max Input Level
I/O Impedance Hi-Z Input:
10 Kilohms
Low-Z Input:
1 Kilohms
Line Output:
600 Ohms
SNR
THD
Dynamic Range
Protections
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Balanced Mic Input
1 x 1/4" TS Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Line Input
1 x 1/4" TRS Balanced Line Output
1 x speakON NL4 Speaker Output
Phantom Power +12 V
USB
Media Playback
Media & File Formats Supported
Network I/O
Wireless Connectivity
Wireless
Wireless Transmission 1.9 GHz
Max Wireless Range RF Wireless:
300' / 91.4 m (Line of Sight)
Number of RF Channels
RF Frequency Band 902 to 928 MHz
RF Bandwidth
Form Factor
RF Output Power
Transmitter I/O
Max Number of Simultaneous Transmitters
Diversity
Antenna
Squelch
Approximate RF Sensitivity
Deviation
Modulation
RF Channel Crosstalk
Spurious
Bluetooth
Bluetooth
Pairing
Bluetooth Channel
Frequency
Bluetooth Power Class 1
Bluetooth Input Gain
Transmitter Power
Bluetooth Range
Power
Battery Type 2 x Built-In Rechargeable 12 V Lithium-Ion
Approximate Battery Life 8 Hours
Battery Charging Time
Internal Battery Capacity 7 Ah
Battery Cycle Count
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Adapter Output
Current Consumption
Power Consumption 250 W (Max)
DC Input Power
AC Power Connector
Physical
Cable Length
Transport Options
Mounting
Stand Height
Stand Load Capacity
Cooling
Construction Material
IP Rating
Operating Temperature
Storage Temperature
Operating Humidity
Dimensions 23 x 14 x 11.5" / 58.4 x 35.6 x 29.2 cm
Weight 28 lb / 12.7 kg
