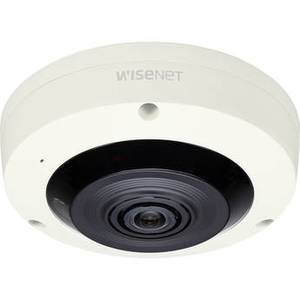

WiseNet X Series XNF-8010R 6MP Network Fisheye Dome Camera with Night Vision
Product Description
The WiseNet X Series XNF-8010R 6MP Network Fisheye Dome Camera with Night Vision from Hanwha Techwin has a 1/1.8" progressive scan CMOS sensor to capture 6MP resolution video at up to 30 fps. This fisheye camera delivers a 2048 x 2048 resolution in a 360° view. In addition to fisheye views, it also delivers single panorama, double panorama, or quad views in a myriad of resolutions. Night vision provides visibility for up to 49.2' in total darkness. A 1.6mm fixed lens offers a 192° horizontal, vertical, and diagonal field of view. Two-way audio communication is supported thanks to a selectable mic in / line in / built-in mic and line out. Two built-in microSD/SDHC/SDXC card slots accept up to 512GB of edge storage in total. microSD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance products.
This camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance products.
| Camera | |
| Sensor | 6 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 1.6mm |
| Maximum Aperture | f/1.6 |
| Zoom | Digital: 8x |
| Lens Field of View | Horizontal: 192° Vertical: 192° Diagonal: 192° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0 Lux |
| Shutter Speed | 1/12000 to 2 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2048 x 2048 at 15/30 fps 2048 x at 15/3/6 fps 2048 x at 10/24 fps 2048 x at 5/12 fps 1024 x at 7/6/8 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, ADPCM, G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | No |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G, SUNAPI, Wisenet open platform |
| Analytics | Tampering, loitering, directional detection, virtual line, enter/exit, (dis)appear, audio detection, sound classification, people counting, heatmap, queue management |
| Built-In Installation Aids | Pixel counter |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.10 to 10.12 *As of May, 2018: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | Local PC, NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 11 W PoE: 12 W |
| Environmental | |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Startup Temperature | |
| Storage Temperature | -58 to 140°F / -50 to 60°C |
| Operating Humidity | 0 to 90% |
| IP Rating | |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | Nightvision Technology up to 49.21' / 15 m |
| Video Management Software | SmartViewer, SSM |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 5.7 x H: 2.2" / �: 146.0 x H: 54.8 mm |
| Weight | 1.61 lb / 730 g |
