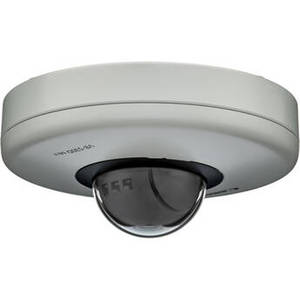

VB-S30D Mk II Canon 2.1MP PTZ Network Minidome Camera
Product Description
The VB-S30D Mk II Canon 2.1MP PTZ Network Minidome Camera from Axis Communications has a 1/4.85" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The 2.25-7.88mm varifocal lens offers a 77.7-20.7° horizontal field of view. PTZ functionality delivers a 350° panning range, a 90° tilting range, and 3.5x optical zoom. Audio reception is possible thanks to an audio input terminal. A built-in slot accepts microSD/SDHC/SDXC cards up to 64GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This indoor camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices.
This indoor camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices.
| Camera | |
| Sensor | 2.1 MP 1/4.85" CMOS |
| Lens Mount | |
| Focal Length | 2.2 to 7.9mm |
| Maximum Aperture | f/1.4 to 2.6 |
| Zoom | Optical: 3.5x Digital: 4x |
| Lens Field of View | Horizontal: 77.7 to 20.7° Vertical: 40.4 to 11.6° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.95 Lux B&W: 0.5 Lux |
| Shutter Speed | 1/16000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps 1280 x 960 at 30 fps 1280 x 720 at 30 fps 960 x 540 at 30 fps |
| Supported Video Compression | H.264, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | No |
| Built-In Speaker | No |
| Audio I/O | Input: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 350° (-175 to 175°) at 120°/s Programmed Tilt: 90° (-90 to 0°) at 120°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | IEEE 802.1X |
| Supported Protocols | APIPA, ARP, DHCP, DNS, FTP, HTTP, ICMP, IPsec, IPv4/v6, NTP, ONVIF Profile S, POP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, mDNS |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile S |
| Analytics | Video: Moving object detection, abandoned object detection, removed object detection, camera tampering detection, passing detection, intrusion detection Audio: Volume detection, scream detection |
| Built-In Installation Aids | |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3at (30 W) |
| Power Consumption | PoE: 7.8 W |
| Environmental | |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 5 to 85% |
| IP Rating | |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | |
| Video Management Software | Camera Management Tool RM-Lite Recorded Video Utility On-Screen Display Assist Tool |
| Supported Languages | English French German Italian Japanese Korean Polish Russian Simplified Chinese Spanish Thai Turkish |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 4.7 x H: 2.1" / �: 120.0 x H: 54.0 mm |
| Weight | 9.6 oz / 272.16 g |
