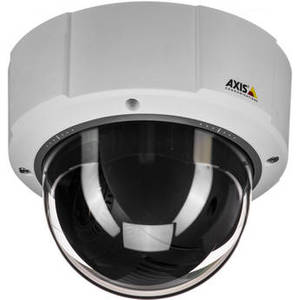

M55 Series M5525-E 1080p Outdoor PTZ Network Dome Camera
Product Description
Keep a watchful eye on your property with the M55 Series M5525-E 1080p Outdoor PTZ Network Dome Camera from Axis Communications. This unit uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. A 4.7-47mm varifocal lens delivers a 61.8 to 6.7° horizontal field of view. This camera features endless panning, a 90° tilt range, and 10x optical zoom. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This PTZ camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK09-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
This PTZ camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK09-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 4.7 to 47mm |
| Maximum Aperture | f/1.6 to 3 |
| Zoom | Optical: 10x Digital: 12x |
| Lens Field of View | Horizontal: 61.8 to 6.7° Vertical: 37.2 to 3.8° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.45 Lux B&W: 0.01 Lux |
| Shutter Speed | 1/66500 to 2 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.726, LPCM, Opus |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: Terminal Block (Unspecified Pin Count) Output: Terminal Block (Unspecified Pin Count) |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 360° at 150°/s Programmed Tilt: 90° at 150°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform One-Click Cloud Connection ONVIF Profiles G & S |
| Analytics | Included: AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, Audio Detection, Advanced Gatekeeper Supported: AXIS Cross Line Detection, AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Built-In Installation Aids | Pixel Counter |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | DC: 6.3 W PoE: 6.6 W |
| Environmental | |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Startup Temperature | |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 15 to 100% |
| IP Rating | IP66 |
| IK Rating | IK09 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Block 6-Pin |
| Illumination | |
| Video Management Software | AXIS Companion, AXIS Camera Station, Video Management Software from Axis' Application Development Partners |
| Supported Languages | English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | Plastic, Polymer |
| Dimensions | �: 6.5 x H: 5.2" / �: 165.0 x H: 132.0 mm |
| Weight | 2.4 lb / 1.1 kg |
