P1275 1920 x 1080 Modular Network Dome Camera with 2.8-6mm Varifocal Lens
Product Description

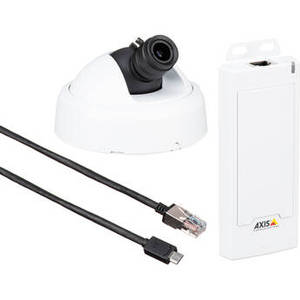

The P1275 1920 x 1080 Modular Network Dome Camera from Axis Communications includes a domed sensor unit, a 26' cable, and a main unit with network and power connections and a memory card slot. The sensor unit rotates and tilts to your desired viewing direction, while the 2.8-6mm varifocal lens can be redirected, re-zoomed, and focused after mounting. The 26' detachable cable connects the sensor unit to the main unit for flexible installation.
Equipped with WDR, it handles scenes with variations in light. The camera features Axis Zipstream technology that reduces bandwidth and storage requirements.
Equipped with WDR, it handles scenes with variations in light. The camera features Axis Zipstream technology that reduces bandwidth and storage requirements.
| Camera | |
| Image Sensor | 1/2.9" (effective) progressive scan RGB CMOS |
| Lens Type | Fixed iris |
| Focal Length | 2.8-6mm |
| Aperture | f/2.0 |
| Field of View | Horizontal: 99 to 53° Vertical: 53 to 30° |
| Minimum Illumination | Color: 0.22 lux |
| Shutter Time | 1/32,500 to 2 sec |
| Angle Adjustments | Pan: 360° Tilt: 0 to 90° Rotation: 360° |
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) baseline Main and high profiles MJPEG |
| Resolution | 1920 x 1080 |
| Frame Rate | 25/30 fps at 50/60 Hz |
| Video Streaming | Multiple (individually configurable streams in H.264 and MJPEG) Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Image Settings | Compression, color, brightness, sharpness, contrast, white balance, exposure value, exposure control, exposure zones, local contrast, rotation, corridor format, WDR (forensic capture), text and image overlay, privacy mask, and mirroring of images |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x network access control, digest authentication, user access log, and centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform (ACAP) AXIS Video Hosting System (AVHS) with one-click connection ONVIF Profile S and ONVIF Profile G |
| Analytics | Included AXIS video motion detection, active tampering alarm Supported AXIS cross line detection Support for AXIS Camera Application Platform, enabling installation of third-party applications |
| Event Triggers | Analytics Edge storage events |
| Event Actions | File Upload: Email, FTP, HTTP, HTTPS, network share Notification: Email, HTTP, HTTPS, and TCP Pre- and post-alarm video buffering Send SNMP trap, WDR mode |
| Built-In Installation Aids | Pixel counter |
| Data Streaming | Event data |
| General | |
| Casing | AXIS P12 Mk II Main Unit: Steel and plastic Sensor Unit: Plastic, aluminum |
| Sustainability | PVC-free |
| Memory | 512 MB RAM, 256 MB Flash |
| Power Consumption | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 Maximum: 4.0 W Typical: 2.5 W |
| Connectors | Female RJ45 for 10Base-T/100Base-TX PoE RJ12 for sensor unit |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) |
| Operating Conditions | -4 to 122°F / -20 to 50°C Humidity 10-85% RH (non-condensing) |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Approvals | EMC 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, VCCI Class B, RCM AS/NZS CISPR 32, ICES-003 Class B, KCC KN32 Class B, KN35 Safety IEC/EN/UL 62368-1 Environment EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27 |
| Video Management Software | AXIS Companion, AXIS Camera Station |
| Dimensions | AXIS P12 Mk II Main Unit: 0.6 x 1.8 x 4.3" / 16.5 x 46 x 109 mm AXIS FA4115 Dome Sensor Unit: 2-2.8 x 3.5" / 50-71 x 88 mm Sensor Unit Cable: 26' / 8 m |
| Weight | AXIS P12 Mk II Main Unit: 2.5 oz / 72 g AXIS FA4115 Dome Sensor Unit: 4 oz / 112 g Sensor Unit Cable: 4.5 oz / 128 g |
