Product Description

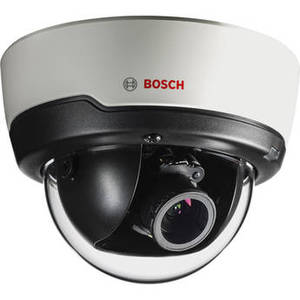

The FLEXIDOME 5000i 5MP Network Dome Camera from Bosch comes with a 1/2.9" CMOS progressive scan sensor and 3-10mm AVF (Automatic Varifocal) lens for capturing videos at a maximum resolution of 3072 x 1728. The camera comes with an auto zoom/focus lens wizard that can be activated from PC or a built-in button.
The camera features built-in Essential Video Analytics that trigger relevant alerts and quickly retrieves data. It also features an integrated gyro/accelerometer sensor that automatically corrects image orientation in steps of 90° if the camera is mounted at right angles or upside-down. The sensor image can also be rotated manually through steps of 90°.
| Imager | 1/2.9" CMOS progressive scan |
| Effective Pixels (H x V) | 3072 x 1944 |
| Minimum Illumination | Color: 0.24 lux at 3100K, reflectivity 89%, 1/25, f/1.3, 30 IRE Mono: 0.03 lux at 3100K, reflectivity 89%, 1/25, f/1.3, 30 IRE |
| Dynamic Range | High Dynamic Range: 120 dB 107 dB (measured according to IEC 62676 Part 5) |
| Day/Night | Color, Monochrome, Auto (adjustable switch points) |
| Adjustable Picture Settings | Contrast, Saturation, Brightness |
| White Balance | 2500 to 10,000K 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color) Manual mode and Hold mode |
| Shutter | AES (Automatic Electronic Shutter) Fixed (1/25[30] to 1/15,000 sec) selectable Default shutter |
| Backlight Compensation | On/off |
| Contrast Enhancement | On/off |
| Signal-to-Noise Ratio (SNR) | >55 dB |
| Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Sharpness | Sharpness enhancement level selectable |
| Defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Privacy Masking | 8 independent areas, fully programmable |
| Intelligent Video Analytics | Essential Video Analytics |
| Scene Modes | Standard, Sodium lighting, Traffic, Intelligent AE, Vibrant, Low bit rate, Sports & Gaming, and Retail |
| Other Functions | Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Location |
| Camera Rotation | Automatic detection with manual override (0/90/180/270°) |
| Optical | |
| Lens Type | 3-10mm Automatic Varifocal (AVF) lens, IR corrected |
| Aperture | f/1.3 to 360 |
| Iris | DC |
| Lens Mount | Board |
| Adjustment | Motorized zoom/focus |
| Iris Control | Automatic iris control |
| Day/Night | Switched mechanical IR filter |
| Field of View | Horizontal: 92 to 29° Vertical: 50 to 18° |
| Video Streaming | |
| Video Compression | H.265, H.264, MJPEG |
| Streaming | Multiple configurable streams in H.264 or H.265 and MJPEG, configurable frame rate and bandwidth Regions of Interest (ROI) |
| Video Resolutions | 3072 x 1728, 5 MP (16:9) 2688 x 1512, 4 MP (16:9) 2304 x 1296, 3 MP (16:9) 1920 x 1080 1280 x 1024, 1.3 MP (5:4) 1280 x 720 640 x 480 320 x 240 Upright Mode: 1728 x 3072, 5 MP 1512 x 2688, 4 MP 1296 x 2304, 3 MP 1080 x 1920 |
| Bit Rate | 5 MP: 1597 kb/s at 30 fps 1205 kb/s at 12 fps 799 kb/s at 5 fps 344 kb/s at 2 fps 4 MP: 1210 kb/s at 30 fps 913 kb/s at 12 fps 605 kb/s at 5 fps 261 kb/s at 2 fps 3 MP: 864 kb/s at 30 fps 652 kb/s at 12 fps 432 kb/s at 5 fps 186 kb/s at 2 fps 1080p: 600 kb/s at 30 fps 438 kb/s at 12 fps 284 kb/s at 5 fps 122 kb/s at 2 fps |
| Latency | Camera Processing Latency: <55 ms (maximum average at 1080p at 30 fps) <65 ms (maximum average at 5 MP at 30 fps) |
| GOP Structure | IP |
| Encoding | Interval: 1 to 25[30] fps Regions: Up to 8 areas with encoder quality settings per area |
| Input/Output | |
| Analog Video Out | SMB connector, CVBS (NTSC), 1 V p-p, 75 Ohms |
| Audio Line In | 0.707 Vrms maximum, 10 kOhms typical, jack connector |
| Audio Line Out | 0.707 Vrms at 16 Ohms typical, jack connector |
| Audio Input | Built-in microphone (can be permanently disabled) |
| Alarm Input | 1 input, short or 5 VDC activation |
| Alarm Output | 1 output Output Voltage: 30 VDC, maximum load 0.5 A |
| Ethernet | RJ45 |
| Audio | |
| Standard | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC-LC, 48 kb/s at 16 kHz sampling rate AAC-LC, 80 kb/s at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Local Storage | |
| RAM | Internal: 60 sec pre-alarm recording |
| Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (A memory card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous Ring recording Alarm/events/schedule recording |
| Software | |
| System Detection | Via IP Helper |
| Configuration | Via web browser or Configuration Manager |
| Firmware Updates | Remotely programmable |
| Viewing | Software Viewing: Web browser Video Security Client Video Security App Bosch Video Management System Bosch Video Client or third-party software |
| Network | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication |
| Encryption | TLS 1.2, SSL, DES, 3DES |
| Ethernet | 10/100Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | GB/T 28181 |
| Electrical | |
| Input Voltage | 12 VDC �5% 24 VAC �10% PoE (48 VDC nominal) |
| PoE Standard | IEEE 802.3af (802.3at Type 1, Class 3) |
| Maximum Power Consumption | 12 VDC: 7.15 W 24 VAC: 6.15 W PoE: 7 W |
| Certifications and Approvals | |
| Standards | IEC 62471 EN 60950-1 UL 60950-1 CAN/CSA-C22.2 NO. 60950-1-03 EN 50130-4 EN 50130-5, Class II (indoor in general, fixed equipment) FCC Part15 Subpart B, Class B EMC directive 2014/30/EU EN 55032 Class B EN 55024 AS/NZS CISPR 32 (equal to CISPR 32) ICES-003 Class B VCCI J55022 V2/V3 EN 50121-4 |
| ONVIF Conformance | Profile S and Profile G |
| Certifications | CE, FCC, UL, cUL, RCM, CB, VCCI, EAC |
| Environmental | |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Humidity | 20 to 90% relative humidity (non-condensing) |
| Mechanical | |
| 3-Axis Adjustment | Pan/Tilt/Rotation: 350/130/330° |
| Material | Dome Bubble: Polycarbonate, clear with anti-scratch coating |
| Color | RAL 9003, RAL 9017 |
| Dimensions | 5.32 x 4" / 135 x 102 mm |
| Weight | 0.99 lb / 0.45 kg |
