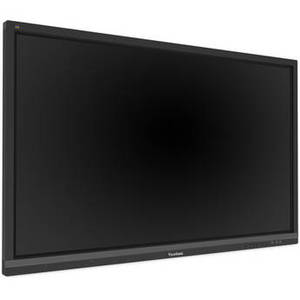

ViewBoard 65" UHD 4K Interactive Display
Product Description
Empower your team to connect, collaborate, and create with the ViewBoard 65" UHD 4K Interactive Display from ViewSonic. This touchscreen features 20-point infrared touch technology and comes with integrated myViewBoard annotation software and ViewBoard Cast streaming software for easy content creation and sharing. Two stylus pens are included. The display's connectivity interface includes HDMI and VGA video inputs, and an HDMI video output. For more computing-intensive interactive applications, the display can be outfitted with an optional slot-in PC module.
| Display | |
| Screen Size (Diagonal) | 65" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 350 cd/m� |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | |
| Response Time | 8 ms (GtG) |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | 68 ppi |
| Backlighting Technology | LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Input Ports | 3 x HDMI 2.0 Audio, Video 1 x VGA 15-Pin Video 1 x RCA Composite Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x HDMI – Audio, Video 1 x 1/8" / 3.5 mm – Audio 1 x TOSLINK Optical – Audio |
| USB Ports | 2 x USB 3.0 / 3.1/3.2 Gen 1 4 x USB 2.0 2 x Unspecified USB, USB-B |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 IP via RJ45 |
| Wi-Fi | Wi-Fi Ready |
| Number of OPS/Expansion Slots | 1 |
| General | |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | 50000 Hours |
| Surface | |
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 20 |
| Surface Treatment | Anti-Glare |
| Hardness Rating | 7H |
| Audio | |
| Built-In Speakers | Yes, 2 x 10 W |
| Processing | |
| Hardware | |
| Operating System | Android 8 |
| CPU | 1.2 GHz Cortex A73 Dual-Core |
| GPU | 1 x Mali 450 |
| Storage | 16 GB |
| RAM | 2 GB |
| OS Compatibility | Android 8 Windows Chrome OS iOS *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Maximum: 350.0 W Typical: 104.0 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | CB, CE, ErPLot 6, FCC, RoHS, TUV, WEEE *as per Manufacturer |
| Physical | |
| Wall Mounting | 600 x 400 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 58.6 x 35.3 x 3.5" / 148.8 x 89.7 x 8.9 cm |
| Weight | 88.9 lb / 40.32 kg |
