Product Description

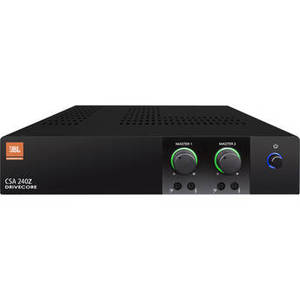

The JBL CSA 240Z Audio Amplifier (2x 40W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amplification.
The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative.
The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative.
| Amplifier | |
| Form Factor/Type | |
| Number of Channels | 2 |
| Number of Channels | |
| Number of Zones | |
| Power Rating | 4 Ohms / 8 Ohms: 40 W (1 kHz, 0.5% THD) |
| Amplifier Class | |
| Load Impedance / Voltage | 4 Ohms (Minimum) 70 / 100 V |
| Performance | |
| Protections | |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (8 Ohms) |
| Damping Factor | |
| Input Sensitivity | 1.4 Vrms |
| Input Impedance | Block: 20 Kilohms (Balanced) RCA: 50 Kilohms |
| I/O Impedance | |
| Max Gain | |
| Max Input Level | |
| Input Level | +22 dBu Maximum |
| Input Gain/Trim Range | |
| Headroom | |
| Output Level | |
| VCA Control | |
| Max Voltage Swing | |
| Insertion Loss | 1 dB Maximum |
| Dynamic Range | |
| SNR | > 100 dB |
| SNR | |
| Noise | |
| EIN | |
| THD | < 0.5% |
| THD+N | |
| Distortion | |
| Intermodulation Distortion | |
| Crosstalk | > 70 dB |
| Slew Rate | |
| CMRR | |
| CMRR | |
| Signal Processing | |
| Sample Rate | |
| AD/DA Conversion | |
| DSP | Yes |
| Latency | |
| Audio Delay | |
| Crossover | Yes |
| EQ | 2-Band |
| Filters | |
| Ducking/Muting | |
| Compressor | Yes |
| Limiting | Yes |
| Connectivity | |
| I/O | 1 x 2RCA TS Summed-Mono Input 2 x Block 3-Pin Input 2 x Block 5-Pin 70/100 V Output |
| Audio I/O | |
| Digital I/O | 2 x RJ45 (Control) |
| Digital Audio I/O | |
| Network I/O | |
| Other I/O | |
| Speaker Outputs | |
| Number of Module Slots | |
| USB | |
| Phantom Power | Yes |
| Bluetooth | |
| Bluetooth Profiles | |
| Bluetooth Range | |
| Media/Memory Card Slot | |
| Power | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC 15 A / NEMA 5-15 |
| DC Input Power | |
| Current Consumption | |
| Power Consumption | |
| AC Outlet | |
| Physical | |
| Display & Indicators | |
| Rackmount Size | |
| Cooling | |
| Thermal Dissipation | |
| Certifications | ENERGY STAR *as per Manufacturer |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Operating Humidity | |
| Dimensions | 8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm |
| Weight | 7.5 lb / 3.4 kg |
