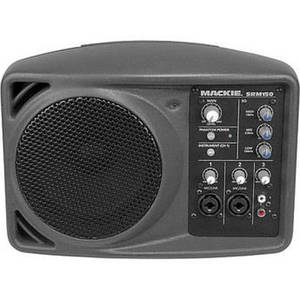

Looking for an ultracompact, versatile active speaker for musical performance or boardroom A/V? Then look no further than the Mackie SRM150 5" Compact Active PA System, a powerful, pint-sized power-house of a PA speaker that includes a 3-channel mixer and a mic stand integration system, great for small club/band PA systems, boardrooms, A/V presentations, classrooms, personal monitor for practice or performance, and PA system expansion.
The SRM150's mixer features two combo XLR-1/4" mic/line channels with switchable 48V phantom power, great for powering condenser microphones. Channel 1 can also accept Hi-Z for guitars and bass. A third stereo channel with RCA inputs accepts line-level sources, such a MP3 players, CDs, and other portable devices. All inputs include their own level control knobs. A master level control and 3-band EQ round out the mixer, allowing you to dial in your perfect sound. Additionally, the rear panel includes a main input and thru-output for connecting to FOH or additional speakers.
The tough, impact-resistant polypropylene enclosure ensure protection from on-the-road wear and tear. The bottom of the cabinet includes an inset, making it mountable on a standard mic stand. An additional inset is provided on the top of the unit, allowing you to deploy the included mic boom extender for mounting a mic above the speaker.
The SRM150's mixer features two combo XLR-1/4" mic/line channels with switchable 48V phantom power, great for powering condenser microphones. Channel 1 can also accept Hi-Z for guitars and bass. A third stereo channel with RCA inputs accepts line-level sources, such a MP3 players, CDs, and other portable devices. All inputs include their own level control knobs. A master level control and 3-band EQ round out the mixer, allowing you to dial in your perfect sound. Additionally, the rear panel includes a main input and thru-output for connecting to FOH or additional speakers.
The tough, impact-resistant polypropylene enclosure ensure protection from on-the-road wear and tear. The bottom of the cabinet includes an inset, making it mountable on a standard mic stand. An additional inset is provided on the top of the unit, allowing you to deploy the included mic boom extender for mounting a mic above the speaker.
| Portable PA System | |
| Speaker Configuration | 1 x Full-Range Loudspeaker |
| Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
| Amplifier Power Rating | 150 W |
| Amplifier Class | Class-D |
| Impedance | |
| Speakers | |
| Enclosure Type | |
| Full-Range Driver | 5.25" / 133.35 mm Cone |
| Full-Range Driver (Oval) | |
| HF Driver | |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | Neodymium |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | None |
| EQ | Contour: ±15 dB at 12 kHz (on Master) ±15 dB at 2.5 kHz (on Master) ±15 dB at 100 Hz (on Master) |
| Semi-Parametric EQ | |
| Effects | |
| DSP | |
| Filters | |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | 100 Hz to 17.5 kHz -3 dB |
| Frequency Range | 60 Hz to 22 kHz -10 dB |
| Maximum SPL | 120 dB (Peak) |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | Mic Input: 3 Kilohms (Balanced) Hi-Z Input: 20 Kilohms (Balanced) Line Input: 10 Kilohms (Balanced) |
| SNR | |
| THD | 0.05% |
| Dynamic Range | |
| Protections | AC Fuse, Output Limiter |
| Connectivity | |
| Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1 x Combo XLR-1/4" TRS Mic/Line Input 1 x Combo XLR-1/4" TRS Line Input 1 x Stereo RCA TS Input 1 x XLR 3-Pin Male Mic/Line Thru |
| Phantom Power | +48 V (Switchable) |
| USB | |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | |
| Power | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Output | |
| Current Consumption | |
| Power Consumption | |
| DC Input Power | |
| AC Power Connector | IEC Input |
| Physical | |
| Cable Length | |
| Transport Options | Handle (Top) |
| Mounting | 1 x Mic Stand Socket (Bottom) |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | Polypropylene |
| IP Rating | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | 11.2 x 8 x 6.8" / 28.4 x 20.3 x 17.3 cm |
| Weight | 7.6 lb / 3.4 kg |
