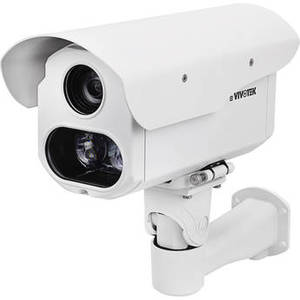

S Series IZ9361-EH 1080p Outdoor Network Bullet Camera with Heater
Product Description
The S Series IZ9361-EH 1080p Outdoor Network Bullet Camera with Heater from Vivotek uses a 1/3" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Built-in IR illumination provides visibility for up to 492' in low-light conditions. The 4.7-94mm varifocal lens delivers a 55.4-2.9° horizontal field of view and 20x optical zoom. Two-way audio communication is possible thanks to a microphone input and line output. An onboard SD/SDHC/SDXC slot supports cards up to 128GB. SD cards are available separately. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is equipped with an embedded heater, and is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
This bullet camera is ONVIF-compliant for Profiles S and G, making it compatible with a wide range of surveillance devices. It is equipped with an embedded heater, and is housed in an IP67-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 2 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 4.7 to 94mm |
| Maximum Aperture | f/1.6 to 3.5 |
| Zoom | Optical: 20x Digital: 128x |
| Lens Field of View | Horizontal: 55.4 to 2.9° Vertical: 32.6 to 1.6° Diagonal: 62.7 to 3.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.26 Lux B&W: 0.01 Lux |
| Shutter Speed | 1/30000 to 1/8 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 30/60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 4 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G |
| Analytics | Five-Window Video Motion Detection Video Content Analysis (VCA) |
| Built-In Installation Aids | |
| OS Compatibility | Windows XP Windows Vista Windows 7 Windows 8 Windows 2000 *As of July, 2018: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | 3 / 1 |
| Hardware | |
| Memory | 512 MB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3bt (60 W) |
| Power Consumption | 48 W (With Heater) 18 W |
| Environmental | |
| Operating Temperature | -58 to 140°F / -50 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 90% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Serial 9-Pin (RS-485) |
| Illumination | IR LEDs up to 492.13' / 150 m |
| Video Management Software | VAST, VADP |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 12.7 x W: 5.8 x L: 14.8" / H: 322.0 x W: 147.0 x L: 375.0 mm |
| Weight | 9.48 lb / 4.3 kg |
