Product Description

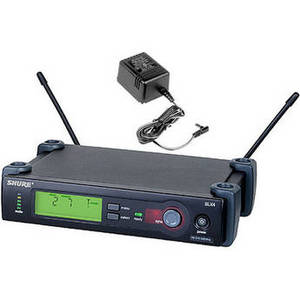

The Shure SLX4 is a single-channel rackmount wireless receiver housed in a rugged metal chassis. It is compatible with the SLX1 bodypack and SLX2 handheld transmitters as well as the MX690 boundary and MX890 desktop base transmitters. The receiver offers high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.
| System | |
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 960 |
| Included Transmitters | |
| Diversity | Antenna Diversity |
| RF Frequency Band | G4: 470 to 494 MHz |
| RF Bandwidth | 24 MHz |
| Frequency Step Size | 25 kHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 12 |
| Bluetooth | |
| Bluetooth Profiles | |
| Audio Codec | |
| Sample Rate/Resolution | |
| Latency | |
| Dynamic Range | |
| Encryption | |
| Deviation | |
| Modulation | |
| Pilot Tone | |
| SNR | |
| THD | |
| THD+N | |
| Form Factor | |
| Mounting Options | |
| Rackmount Size | |
| Receiver Module Capacity | |
| Number of Audio Channels | |
| Audio I/O | |
| Audio Output Level | |
| Frequency Response | |
| Network I/O | |
| Network Protocols | |
| Word Clock I/O | |
| USB/Lightning Connectivity | |
| Antenna | |
| Impedance | |
| Signal Processing | |
| AC/DC Power Adapter | |
| AC Input Power | |
| Display & Indicators | |
| Operating Humidity | |
| Operating Temperature | |
| Storage Temperature | |
| Dimensions | |
| Weight | |
| Receiver | |
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x 1/4 Wave External, BNC (Rear-Mount) |
| Antenna Bias Voltage | |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Mic Output (Lockable) 1 x 1/4" TRS Female Unbalanced Output |
| Slot-Mount I/O Adapters | |
| Gain Range | 0 to -25 dB |
| Pad | |
| Audio Output Level | XLR Output: -13 dBV (Mic Level) 1/4" Output: -2 dBV (Instrument Level) |
| Phantom Power Protection | |
| Signal Processing | |
| Frequency Response | 45 Hz to 15 kHz �2 dB |
| Network I/O | |
| Network Protocols | |
| Word Clock I/O | |
| USB/Lightning Connectivity | |
| Impedance | XLR Output: 200 Ohms (Balanced) 1/4" Output: 1 Kilohms (Unbalanced) |
| RF Principle | |
| Approximate RF Sensitivity | -105 dBm |
| RF Output Power | |
| Squelch | |
| Adjacent Channel Isolation | >70 dB |
| Spurious | |
| Power Requirements | AC/DC Power Adapter |
| Battery Type | |
| Internal Battery Capacity | |
| Battery Charging Time | |
| Approx. Battery Life | |
| Battery Cycle Count | |
| AC/DC Power Adapter | 12 VDC at 400 mA (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 150 mA |
| AC Input Power | |
| Display & Indicators | 1 x Backlit LCD (Channel, Group, Transmitter Battery Status) |
| Housing | Steel |
| Operating Temperature | 0 to 122°F / -18 to 50°C |
| Operating Humidity | |
| Storage Temperature | |
| Dimensions | 7.8 x 1.7 x 5.3" / 197 x 42 x 134 mm |
| Weight | 1.8 lb / 816 g |
| Form Factor | |
| RF Output Power | |
| Audio I/O | |
| Included Cable Connector | |
| Phantom Power | |
| Plug-In Power | |
| Pad | |
| Muting | |
| Audio Input Level | |
| Auto-Level Control | |
| Recorder Sample Rates | |
| Recorder Bit Depths | |
| Memory Card Support | |
| Audio File Formats | |
| Bit Rates | |
| Timecode | |
| Gain Range | |
| Signal Processing | |
| Cable Tone Simulation | |
| Frequency Response | |
| Sync Method | |
| Antenna | |
| Approximate RF Sensitivity | |
| Power Requirements | |
| Battery Type | |
| Internal Battery Capacity | |
| Battery Charging Time | |
| Approx. Battery Life | |
| Battery Cycle Count | |
| USB/Lightning Connectivity | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | |
| Weight | |
| Form Factor | |
| Instrument Mic Type | |
| Color | |
| Sound Field | |
| Operating Principle | |
| Capsule | |
| Diaphragm | |
| Polar Pattern | |
| Frequency Range | |
| SNR | |
| Equivalent Noise Level | |
| Maximum SPL | |
| THD | |
| Impedance | |
| Load Impedance | |
| Sensitivity | |
| CMRR | |
| Dynamic Range | |
| Output Connectors | |
| Cable Length | |
| Operating Voltage | |
| Operating Current Consumption | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Length | |
| Diameter | |
| Weight | |
| Form Factor | |
| RF Output Power | |
| Audio I/O | |
| Included Cable Connector | |
| Phantom Power | |
| Plug-In Power | |
| Pad | |
| Muting | |
| Audio Input Level | |
| Auto-Level Control | |
| Gain Range | |
| Signal Processing | |
| Frequency Response | |
| Sync Method | |
| Antenna | |
| Approximate RF Sensitivity | |
| Power Requirements | |
| Battery Type | |
| Internal Battery Capacity | |
| Battery Charging Time | |
| Approx. Battery Life | |
| Battery Cycle Count | |
| USB/Lightning Connectivity | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | |
| Weight | |
| Form Factor | |
| Instrument Mic Type | |
| Color | |
| Sound Field | |
| Operating Principle | |
| Capsule | |
| Diaphragm | |
| Polar Pattern | |
| Frequency Range | |
| SNR | |
| Equivalent Noise Level | |
| Maximum SPL | |
| THD | |
| Impedance | |
| Load Impedance | |
| Sensitivity | |
| CMRR | |
| Dynamic Range | |
| Output Connectors | |
| Cable Length | |
| Operating Voltage | |
| Operating Current Consumption | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Length | |
| Diameter | |
| Weight | |
| General | |
| Warranty Length | Limited 2-Year Warranty |
