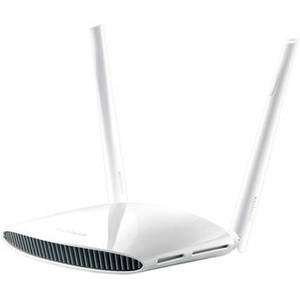

BR-6478AC V2 Dual-Band Wireless-AC1200 Gigabit Router


From EDIMAX Technology | Model #: EDBR6478ACV2



See more in Electronics


BR-6478AC V2 Dual-Band Wireless-AC1200 Gigabit Router

Product Description

With support for the 802.11ac Wi-Fi protocol, the BR-6478AC V2 Dual-Band Wireless-AC1200 Gigabit Router from Edimax is capable of achieving wireless data transfer rates of up to 1200 Mbps. In addition to support for 802.11ac Wi-Fi, users can also take advantage of dual-band connectivity allowing more bandwidth intensive tasks such as streaming multimedia content, transferring large files, and more to be allocated to the less congested 5 GHz frequency. For devices requiring an Ethernet connection this Edimax router comes equipped with four Gigabit Ethernet ports as well as a single USB 2.0 port to attach USB compatible storage devices to the network.

Configuration and management of this Edimax router has been greatly simplified thanks to Smart iQ Setup and iQoS Bandwidth Management. You can set up the router without the need for a CD as Smart iQ Setup is completely web-based and is also accessible through a smartphone, iPad, tablet, or computer. Once configured, iQoS Bandwidth Management makes it easy to allocate bandwidth throughout the network to ensure tasks like streaming video have the necessary bandwidth to operate smoothly. The network administrator can even set up guest networks, restrict access to specific portions of the network, prevent access to websites, and more.
Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz Dual-Band
Number of Antennas 2
MU-MIMO Support 2 x 3
WLAN Mode Wi-Fi 5 (802.11ac)
Sensitivity -55 to -91 dBm
Antenna Gain 3 dBi
Transmit Power 13 to 18 dBm
Supported Protocols DMZ
DoS
IGMP Snooping
IPv4
MAC Filtering
Antenna Placement External (Integrated)
Bluetooth
Performance
Throughput 1200 Mb/s Total
2.4 GHz: 300 Mb/s
5 GHz: 867 Mb/s
5G NR
Interface
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)
1 x 480 Mb/s USB-A
USB Sharing Support Yes
Security
Guest Network Support Yes
Wireless Security WEP, WPA, WPA2
VPN Protocol IPSec, PPTP, Pass-Through
Firewall Support SPI
Lock Slot
Operation Modes
Supported Clients
Max SSIDs Supported
Hardware
RAM 64 MB
Storage Capacity 8 MB
Processor
CPU
Supported IEEE Standards 802.11ac, 802.11a, 802.11b, 802.11g, 802.11n
Electrical
AC Input Power
DC Input Power VDC at 1.25 A
Power Consumption
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature
Operating Humidity 10 to 90%
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications CE, FCC
*as per Manufacturer
Mount Options
Range
Dimensions 7.5 x 6.8 x 1.7" / 190.2 x 172 x 42 mm
Weight 0.7 lb / 322 g
