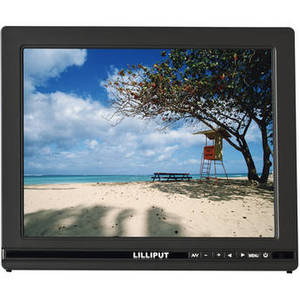

FA1000-NP/C/T 9.7"-Class XGA Touchscreen Monitor
Product Description
Add a touchscreen display to your system with the Lilliput FA1000-NP/C/T 9.7"-Class XGA Touchscreen Monitor. It has a native resolution of XGA 1024 x 768 with support for signals up to 1920 x 1080. With a brightness rating of 420 cd/m², a contrast ratio of 900:1, and viewing angles up to 170 x 178°, colors should appear clear in most installation settings. The monitor is equipped with HDMI and DVI inputs, and VGA and composite video connections are possible via the proprietary SKS connection.
| Display | |
| Screen Size (Diagonal) | 9.7" |
| Resolution | 1024 x 768 |
| Supported Display Resolutions | Maximum: 1920 x 1080 / 60 Hz |
| Panel Type | LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 420 cd/m� |
| Viewing Angle (H x V) | 170 x 178° |
| Screen Area | 7.74 x 5.81" / 196.608 x 147.456 mm |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 900:1 |
| Dynamic Contrast Ratio | |
| Response Time | 20 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | 0.192 x 0.192 mm |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI Audio, Video 1 x DVI Video 1 x Proprietary Audio, Video |
| Output Ports | 1 x 1/8" / 3.5 mm – Headphone |
| USB Ports | 1 x Unspecified USB, Mini-USB - Control |
| Ethernet Ports | None |
| Digital Media Slot | None |
| General | |
| TV Tuner | No |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Resistive |
| Multi-Touch Points | |
| Surface Treatment | Anti-Glare |
| Hardness Rating | 3H |
| Haze Level | |
| Audio | |
| Built-In Speakers | Yes, 1 W |
| Speaker Configuration | |
| Processing | |
| External Speaker Output | |
| Operating System | |
| GPU | |
| Storage | |
| RAM | |
| Supported File Systems | |
| Integrated Camera | |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Picture in Picture (PIP) | |
| Supported Languages | English Traditional Chinese |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 10.0 W |
| DC Input Power | 7 to 24 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -13 to 149°F / -25 to 65°C |
| Operating Humidity | 0 to 80% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Physical | |
| Material of Construction | |
| Audible Noise | |
| IP Rating | IP62 |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 9.2 x 7.6 x 1.1" / 234.4 x 192.5 x 29.0 mm |
| Weight | 22 oz / 625 g |
