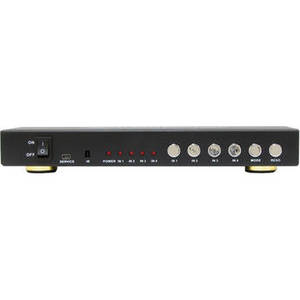

4x1 HDMI Quad Screen Multi-Viewer & Seamless Switcher
Product Description
Simultaneously view or switch between four HDMI sources with this 4x1 HDMI Quad Screen Multi-Viewer & Seamless Switcher from A-Neuvideo. Whether you operate this device as a switcher or as a multiviewer, you can extend the output signal up to 250' by connecting the internal UTP extender and included receiver with a separately available Ethernet cable. Multiview can be operated in quad-view or picture-in-picture modes. Once you have your sources and display set up, use the front panel buttons, included IR remote control, or RS-232 connection to control the device. IR communication between device and display can be carried bi-directionally using the included IR transmitters and receivers.
| Interfaces | |
| Input Connectors | 4 x HDMI Female |
| Embedded Audio Input | |
| Output Connectors | 1 x HDMI 1 x RCA 1 x RJ45 1 x TOSLINK (S/PDIF) |
| Other I/O | 1 x 1/8" / 3.5 mm IR 1 x DE-9/DB-9 RS-232 4 x 1/8" / 3.5 mm IR |
| Standards | |
| Video Standard Compliance | |
| Re-Clocking | |
| HDR Compatibility | |
| HDCP Support | |
| EDID Support | |
| Audio Decoding | DTS Digital Surround, Dolby Digital, PCM |
| Transmission | |
| Max Transmission Distance | 1080p at 60 Hz: 250' / 76.2 m (via Cat 6a/7) |
| Video Format | HDMI (4:2:2 RGB, YCC) 1080p: 24/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 480p: 60 fps NTSC: 50 fps |
| PC Resolutions | |
| Audio Format | |
| Audio Channels | 7.1-Channel |
| Bandwidth | 165 MHz |
| Gain | |
| Differential Gain | |
| Differential Phase | |
| Impedance | |
| Jitter | |
| Max Sample Rate/Resolution | |
| Maximum Data Rate | |
| Signal-to-Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Signal Level | |
| Return Loss | |
| Installed Operating System | |
| GPU | |
| Total Installed Capacity | |
| Total Installed Memory | |
| Memory Configuration | |
| Memory Type | |
| ECC Memory | |
| Memory Slot Type | |
| Power Supply | |
| Power | |
| Power Connector | |
| Power Consumption | Power Supply: 12 VDC at 2.5 A (10 W) |
| ESD Protection | �8 kV Air-Gap Discharge �4 kV Contact Discharge |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
| Storage Humidity | |
| General | |
| Rack Form Factor | 1 RU |
| Maximum Multiple Display Configuration | |
| LED Indicators | |
| Material of Construction | Metal |
| Mean Time Between Failures (MTBF) | |
| Dimensions | 9.8 x 4.6 x 1.3" / 32.0 x 25.0 x 11.8 cm |
| Weight | 1.7 lb / 750 g |
