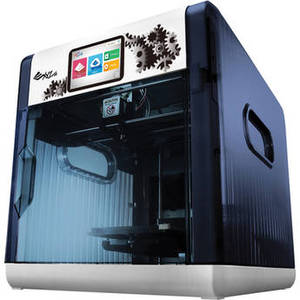

da Vinci 1.1 Plus 3D Printer


From XYZprinting | Model #: XY3F11XXUS00



See more in Office Electronics


da Vinci 1.1 Plus 3D Printer

Product Description

Print in ABS and PLA up to a maximum build volume of 7.8 x 7.8 x 7.8" with the da Vinci 1.1 Plus 3D Printer from XYZprinting. Create detailed objects in resolutions as fine as 100 microns. Alternatively, choose the Ultra Fast speed setting to print your designs in 400-micron resolution when greater precision isn't required. The enclosed printing area both protects users from hot machinery during printing and maintains the high temperatures required for successful printing with ABS plastic. Filament is fed into the da Vinci Plus from proprietary cartridges that can be refilled with more filament when empty.

The included XYZWare software will accept .STL files and convert them to .3W files for printing on the da Vinci Plus. Use the printer as a completely standalone device with the included USB drive or Wi-Fi, or connect it to your computer via a USB 2.0 cable or Ethernet. Download the XYZapp for Apple or Android to gain access to thousands of 3D designs you can print from anywhere. The da Vinci Plus will also capture your 3D prints during production and send picture updates routinely to your XYZapp.

Navigate the da Vinci Plus with the onboard 5" LCD color touchscreen panel. The printer ships fully assembled and, being plug-and-play, is ready to print out of the box. Also included with the da Vinci Plus are one filament cartridge, a glue stick, several post-production tools, and a USB flash drive containing the user manual, XYZware software, and a print sample. It is compatible with Mac and Windows operating systems.

Printer
Print Technology
Build Volume 7.8 x 7.8 x 7.8" / 19.8 x 19.81 x 19.8 cm
Number of Extruders 1
Layer Resolution XY Axis: 100 to 400 micron / 0.1 to 0.4 mm (4 Settings)
Supported Extruder Nozzle Diameter 400 micron / 0.4 mm
Positioning Precision
Print Speed
Light Source
Filament Compatibility 1.75 mm Diameter:
ABS, PLA
Build Area
Build Area Type Enclosed
Extendable
Build Plate Features Manual Leveling
Build Plate Composition
Filament Spool Storage Proprietary Cartridge
3D Scanner No
Monitoring Camera Yes
Connectivity
Wired Connections 1 x RJ45
1 x USB-A 2.0
1 x USB-B 2.0
Wi-Fi Yes
Media/Memory Card Slot Yes
Software
OS Compatibility Android
Windows 7 or Later
iOS
macOS 10.8 or Later
*As of April, 2019: Check with manufacturer for the most up-to-date compatibility
Supported 3D File Types .3w, .stl
General
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Dimensions (W x H x D) 18.4 x 20 x 22" / 46.74 x 50.8 x 55.88 cm
Weight 59.5 lb / 27 kg
