Product Description

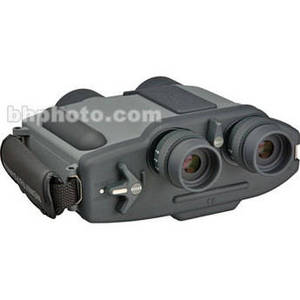

The image-stabilized Fujinon 16x40 S1640D Stabiscope Binoculars use gyroscopic stabilization to counteract any movements applied to the binoculars, whether from shaky hands or speeding watercraft. Unlike other stabilizers, the Stabiscope binoculars' ±5° of compensation will work with the optics aimed along any axis. A user can aim the Stabiscope straight up or down, at the zenith or nadir, and still enjoy stable viewing, making the Stabiscope the most sensible choice for law enforcement use from a helicopter. This 16x magnification unit is designed for longer-distance observation, with a 167' minimum distance.
The Stabiscope also is compatible with multiple power sources. They can be powered with 12-32 VDC electrical systems found on most land, sea, and air vehicles, as well as four AA batteries or a single 2CR5 battery.
The Stabiscope binoculars are designed for either left- or right-hand use, and optional accessories include polarizing filters and eyecups.
| Prism Type | Roof (BAK4) |
| Performance | |
| Magnification | 16x |
| Objective Lens Diameter | 40 mm |
| Angle of View | 3.4° (Actual) |
| Field of View | 178.5' @ 1000 yd / 59.5 m @ 1000 m |
| Minimum Focus Distance | 167.3' / 51 m |
| Exit Pupil Diameter | 2.5 mm |
| Eye Relief | 12 mm |
| Interpupillary Adjustment | 60 to 70 mm / 2.4 to 2.8" |
| Diopter Adjustment | -5 to +5 |
| Focus Type | Individual |
| Pixels | |
| Sensor Type | |
| Maximum Recording Resolution | |
| Video Recording Modes | |
| Camera Min Focus Distance | |
| File Formats Supported | |
| Monitor | |
| Storage | |
| Features | |
| Stabilization Freedom | +/- 5° |
| Resolution | |
| Scan Rate | |
| Reticle | |
| Fogproof | Yes |
| Water Resistance | Waterproof |
| General | |
| Battery | 4 x AA or 1 x 2CR5 |
| Tripod Mounting Thread | |
| Dimensions | 8.3 x 3.5 x 7.9" / 21.1 x 8.9 x 20.1 cm |
| Weight | 3.92 lb / 1.78 kg |
