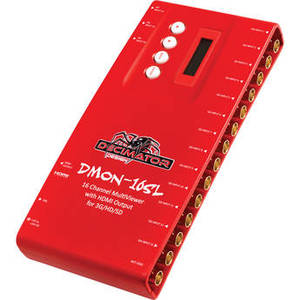

DMON-16SL 16-Channel SDI Multiviewer with HDMI Output
Product Description
Make an HDMI screen an SDI multiview monitor with DECIMATOR's DMON-16SL 16-Channel SDI Multiveiwer. The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable. Having both of these interfaces precludes the need for obscure LED status lights or complicated DIP switches.
The DMON-16SL features 16 SDI inputs which support SD,HD, and 3G-SDI standards. Inputs have auto-detection so video streams are displayed correctly. Each input is separate from the others, allowing multiple video frame rates and resolutions to be displayed simultaneously when running as a multi-viewer. The on-screen layout can be changed to display the windows in the position and size of your choosing. A pass-through mode will show only a single input on the display at a time, scaling the video to match the resolution of your display.
| Interfaces | |
| Input Connectors | 16 x BNC (3G-SDI) |
| Embedded Audio Input | |
| Output Connectors | 1 x HDMI |
| Other I/O | 1 x USB Type-A |
| Standards | |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/424M |
| Re-Clocking | |
| HDR Compatibility | |
| HDCP Support | |
| EDID Support | |
| Audio Decoding | |
| Transmission | |
| Max Transmission Distance | |
| Video Format | HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps PAL: 50 fps NTSC: 59.94 fps |
| PC Resolutions | |
| Audio Format | |
| Audio Channels | |
| Bandwidth | |
| Gain | |
| Differential Gain | |
| Differential Phase | |
| Impedance | |
| Jitter | |
| Max Sample Rate/Resolution | |
| Maximum Data Rate | |
| Signal-to-Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Signal Level | |
| Return Loss | |
| Installed Operating System | |
| GPU | |
| Total Installed Capacity | |
| Total Installed Memory | |
| Memory Configuration | |
| Memory Type | |
| ECC Memory | |
| Memory Slot Type | |
| Power Supply | |
| Power | |
| Power Connector | 1 x Barrel (5 to 35 VDC) Input |
| Power Consumption | |
| ESD Protection | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| General | |
| Rack Form Factor | |
| Maximum Multiple Display Configuration | |
| LED Indicators | |
| Material of Construction | |
| Mean Time Between Failures (MTBF) | |
| Dimensions | 8.7 x 4.1 x 1.2" / 220.0 x 103.7 x 29.5 mm |
| Weight |
