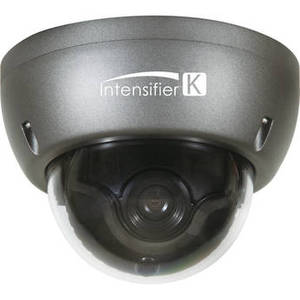

Intensifier K Series Indoor/Outdoor Dome Camera with 2.8-12mm Lens and Heater


From Speco Technologies | Model #: SPHTINT59K



See more in Electronics


Intensifier K Series Indoor/Outdoor Dome Camera with 2.8-12mm Lens and Heater

Product Description

Monitor both indoor and outdoor areas using the Intensifier K Series Indoor/Outdoor Dome Camera from Speco Technologies. The camera features a 1/3" 1.3MP Sony image sensor, 1000 TV line resolution, and true wide dynamic range to capture high-quality video. A 2.8-12mm auto iris varifocal lens provides a 4x manual optical zoom option during installation. Designed to perform in low-light scenarios, the camera requires a minimum illumination of only 0.0001 lux and amplifies existing light for high-quality video in almost complete darkness.

When used in inclement weather, heater circuitry removes fog or condensation, and an IP67-compliant housing creates a weatherproof and dustproof enclosure. The casing is also vandal- and tamper-resistant for secure recording. The package includes a chameleon cover which snaps onto the camera and can be painted to match the installation area. A relay output provides motion detection, and presets include indoor, outdoor, low light, hallway, lobby, and elevator options. The camera utilizes 12 VDC and 24 VAC dual voltage for versatility, and includes a video test connector with a power jack as well as mounting hardware.
Image Sensor 1/3" 1.3 MP Sony Sensor
Resolution 1000 TVL
Lens 2.8 to 12 mm, auto-iris varifocal
DC / Manual
Minimum Illumination 0.0001 lux
Effective Pixels (H x V) 1305 x 1049
Total Pixels (H x V) 1312 x 1069
TV System NTSC
Scanning System Progressive
S/N Ratio More than 50 dB
Frame Rate Maximum: 50/60p
Video Output 1.0 Vpp / 75 ohms
Electronic Shutter Speed Auto / Manual (1/60 sec to 1/60,000 sec) / Flicker
WDR Control On (Low / Middle / High) / Off
Digital WDR On (Low / Middle / High) / Off
Day/Night Color / B&W / Auto / External
White Balance Auto / Auto Ext / AWC ‒ SET / Manual
Brightness 0 to 20 (level adjustable)
AGC (Automatic Gain Control) 0 to 20 (level adjustable)
Sens-up 2 to 32x
Motion Detection: On / Off (4 zones)
Tracking: On / Off
Privacy On / Off (16 zones)
3DNR Off / Low / Middle / High
Digital Image Stabilizer On / Off
Sharpness 0 to 15 (level adjustable)
Defog On (Auto / Manual) / Off
Flip / Mirror On / Off
Lens Shading Compensation On / Off
Power Consumption 12 VDC, 590 mA / 24 VAC, 230 mA
Power Supply 12 VDC / 24 VAC dual-voltage operation (power supply not included)
IP Rating IP67
Operating Temperature -4 to 140°F (-20 to 60°C)
Dimensions 4.7 x 3.3" (11.9 x 8.4 cm)
Weight 2.2 lb (0.9 kg)
