WAT-902H2 CCIR Ultimate 1/2" Compact B/W Camera (PAL)
Product Description

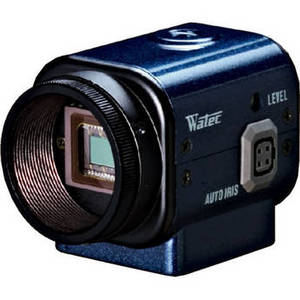

The PAL-signal WAT-902H2 CCIR Ultimate 1/2" Compact B/W Camera from Watec is a lightweight and compact, CCTV camera that is highly sensitive and can operate in very low-light conditions, nearing the IR range, with a minimum illumination of 0.0001 lux. This camera can mount any CS-style lens and is equipped with an auto-iris power/control socket. Additional features include manual gain and shutter speed adjustments, with four options for back-light compensation. This is a camera body only, lenses must be purchased separately.
| Signal System | PAL |
| Image Sensor | 1/2" B/W IT CCD |
| Resolution | 570 Lines |
| Number of Pixels | Total: 795 x 596 Effective: 752 x 582 |
| Lens | Accepts CS threaded-mount lenses |
| Iris Operation | Auto-Iris socket for compatible lenses |
| Minimum Illumination | 0.0001 Lux f/1.4 |
| Signal-to-Noise Ratio | >50dB |
| Controls | • Electronic Iris: 1/60-1/100,000 / 1/100,000 sec • Electronic Shutter: 1/60 (off), 1/00 (fl) 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10,000, 1/100,000 • AGC: Hi: 5-60dB / Lo: 5-32dB • MGC: 5-60dB • Back Light Compensation: (On) Center, Lower, Center + Lower (Off) |
| Sync | Internal |
| Video Output | BNC |
| Power Requirements | 12 VDC |
| Power Consumption | 1.3W |
| Environmental | Operating temperature: 14 to 104° F (-10 to 40° C) Less than 95% relative humidity, non-condensing |
| Dimensions | 2.5 x 1.6 x 1.4" (6.3 x 4.0 x 3.6 cm) |
| Weight | 3.5 oz (98 g) |
