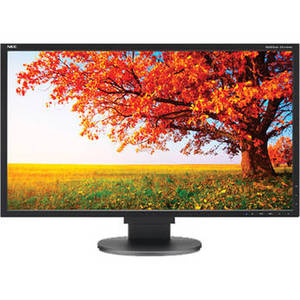

EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor
Product Description
The EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor from NEC is an IPS panel providing wide viewing angles, color consistency, and image accuracy. With LED backlight technology you can take advantage of a thinner, lighter design. The EA224WMI-BK comes equipped with DisplayPort, HDMI, DVI-D, and VGA D-Sub inputs as well as an integrated 4-port USB 2.0 hub. With touch-sensitive controls you can make necessary adjustments to the picture quality of your display, or take advantage of smart sensing technology including ambient light and human sensors to automatically determine the proper display brightness. For multi-screen configurations you can utilize the ControlSync feature allowing setup of up to six MultiSync EA Series monitors.
| Display | |
| Size | 21.5" |
| Screen Area | |
| Panel Type | IPS-Type LCD |
| Curvature | |
| Touchscreen | No |
| Resolution | 1920 x 1080 |
| Aspect Ratio | |
| Pixels Per Inch (ppi) | |
| Finish | |
| Hardness Rating | |
| Maximum Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | |
| Refresh Rate | |
| Variable Refresh Technology | None |
| Pixel Clock Frequency | |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Look-Up Table | |
| HDR Compatibility | |
| Color Gamut | |
| Response Time | 6 ms (Overdrive) |
| Viewing Angle (H x V) | 178 x 178° |
| Dot Pitch | 0.25 x 0.25 mm |
| Backlight Lifespan | |
| Inputs / Outputs | |
| Processor | |
| CPU | |
| Inputs/Outputs | 1 x 1/8" / 3.5 mm Output 4 x USB Type-A 2.0 Output 1 x DVI-D 1 x DisplayPort Input 1 x HDMI 1 x VGA |
| HDCP Support | |
| Built-In Speakers | Yes |
| Webcam | |
| Built-In Mic | |
| Media Card Reader | |
| Wi-Fi | |
| Bluetooth | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Power | |
| Power Consumption | 0.4 W (Standby) 26 W (Typical) |
| AC Input Power | |
| Power Adapter Type | |
| Power Supply | |
| USB Power Delivery | |
| DC Input Power | |
| Environmental | |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 85% |
| Operating Altitude | 0 to 6562' / 0 to 2000 m |
| Storage Altitude | 40,000' / 12,192 m |
| Certifications | ENERGY STAR, EPEATGOLD, RoHS, TCO Certified *as per Manufacturer |
| Physical | |
| Height Adjustment | 5.1" / 13 cm |
| Rotation Adjustment | Yes |
| Swivel Adjustment | Yes |
| Tilt Adjustment | Yes |
| Max Arm Extension Length | |
| Mounting-Hole Pattern | |
| Lock Slot | |
| Dimensions (W x H x D) | 20.0 x 14.6 x 8.6" / 50.7 x 37.0 x 21.8 mm (with Stand) 20.0 x 11.9 x 2.4" / 50.7 x 30.1 x 6.1 mm (without Stand) |
| Weight | 13.2 lb / 6 kg (with Stand) 8.2 lb / 3.7 kg (without Stand) |
