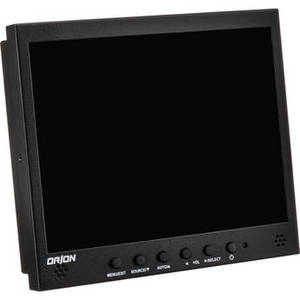

Premium Series 9.7" Rack-Mountable LED CCTV Monitor
Product Description
The Premium Series 9.7" Rack-Mountable LED CCTV Monitor from ORION Images supports up to 1024 x 768 video resolution at 75 Hz for displaying high-definition surveillance footage. The monitor features 3D deinterlacing, auto source sequencing, and noise reduction enhancements. Housed in a galvanized iron chassis for durability, the monitor has a 75 x 75mm VESA pattern, providing compatibility with mounting brackets for easy installation. The monitor is also rack-mountable with the RMK-08 rack mount (available separately) for unobtrusive placement. There are two 1W built-in speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, HDMI, RCA, and PC stereo.
| Screen Size | 9.7" / 24.6 cm |
| Resolution | 1024 x 768 @ 75 Hz |
| Pixel Pitch | 0.192 x 0.192 mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 800:1 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 170° / 170° (H/V) |
| Display Colors | 16.7 Million |
| Response Time | < 25 ms |
| Video System | NTSC / PAL |
| Frequency | H: 31 to 38 KHz V: 55 to 75 KHz |
| Interface | 2 x BNC inputs 2 x BNC outputs 1 x S-Video input 1 x HDMI input 1 x VGA input (15-Pin D-Sub) 1 x RCA audio input 1 x PC stereo input |
| Speaker | 2 x 1 W built-in |
| Features | Filter Type: 3D adaptive deinterlacer Noise reduction Auto source sequencing |
| Multi-Language | English, Spanish, French, German, Italian |
| Cabinet | Material: Electronic galvanized iron Desk Top Stand: Yes Tilt Function: Yes |
| Power Consumption | < 20 W |
| Electrical Ratings | 100 to 240 VAC, 50/60 Hz 12 VDC, 3 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| VESA Mount Size | 75 x 75 mm |
| Compatibility | Wall Mounting: WB-5, WB-10, WB-30 Ceiling: CMK-01 Rack: RMK-08 |
| Dimensions | 8.5 x 7.4 x 2.8" / 21.5 x 18.9 x 7.1 cm |
| Weight | 4.5 lb / 2.04 kg |
