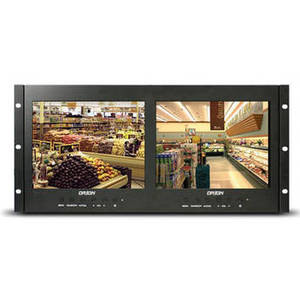

Rack Mount Ready Series Dual 9.7" Rack-Mountable LCD CCTV Monitors
Product Description
The Rack Mount Ready Series Dual 9.7" Rack-Mountable LCD CCTV Monitors from ORION Images support up to 1024 x 768 video resolution at 75 Hz for displaying high-quality surveillance footage. These commercial grade monitors are designed for 24/7 365-day constant use, making them an ideal solution for factory control rooms, automotive, marine, and special Kiosk applications. There are two built-in 1W speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, HDMI, and RCA. The monitors are 5U rack-mountable for placement on a shelf or in a media cabinet, and they have a 75 x 75mm VESA pattern, providing compatibility with mounting brackets for easy installation.
| Display | |
| Screen Size | 9.7" (24.6 cm) |
| Resolution | 1024 x 768 @ 75 Hz (max) |
| Pixel Pitch | 0.192 x 0.192 mm |
| Brightness | 350 cd/m² |
| Contrast Ratio | 500:1 |
| Aspect Ratio | 4:3 |
| Viewing Angle | 130°/140° |
| Display Colors | 262,144 colors (6-bit) |
| Response Time | < 20 ms |
| Video System | NTSC / PAL |
| Frequency | Horizontal: 50 to 64 KHz Vertical: 55 to 75 KHz |
| Interface | |
| BNC Input | Per Panel: 2 Total: 4 |
| BNC Output | Per Panel: 2 Total: 4 |
| S-Video Input | Per Panel: 1 Total: 2 |
| HDMI Input | Per Panel: 1 Total: 2 |
| VGA In | Per Panel: 1 Total: 2 |
| Audio Input | Per Panel: 1 Total: 2 |
| PC Stereo In | Per Panel: 1 Total: 2 |
| Additional Features | |
| Speaker | 2 x 1 W |
| Filter | 3D Motion Adaptive DeInterlacer |
| Languages | English, Spanish, French, German, Italian |
| General | |
| Housing | Electronic galvanized Iron |
| Tilt Function | Yes |
| Power Consumption | < 35 W |
| Power Requirements | 100 to 240 VAC, 50/60 Hz 12 VDC, 3.5 A |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| VESA Mount Size | 75 x 75 mm |
| Mounting | Wall mounting with WB-5, WB-10, WB-30, WB-31 brackets Ceiling mounting with CMK-01 5 RU rack-mountable, tiltable |
| Dimensions | 19.0 x 8.7 x 2.0" (48.2 x 22.0 x 5.0 cm) |
| Weight | 7.6 lb (3.44 kg) |
